Item #: E30-400-12-G16
UPC: 02717540904
Price: $349.00
    Points to Purchase: 49858
    Availability: Available
    Usually ships In 3-9 business days (sooner, if drop-shipped)

    Quantity:
    The AmpFlow speed reducers are heavy-duty, low-cost gearheads that work with any of the three-inch diameter AmpFlow motors.

    The speed reducers use a unique three-stage chain-and-sprocket mechanism that reduces cost while delivering very high torque capacity.

    This unit provides speed reduction and torque multiplication, and it's an easy way to "bolt in" the AmpFlow motors.

    Nominal Voltage: 12V
    Peak Horsepower: 1.6
    Reduction Rato: 1:15.9
    Stall Torque: 960in-lb
    No load RPM: 410
    Weight: 10.0lb

    0-E30-400-12-G16

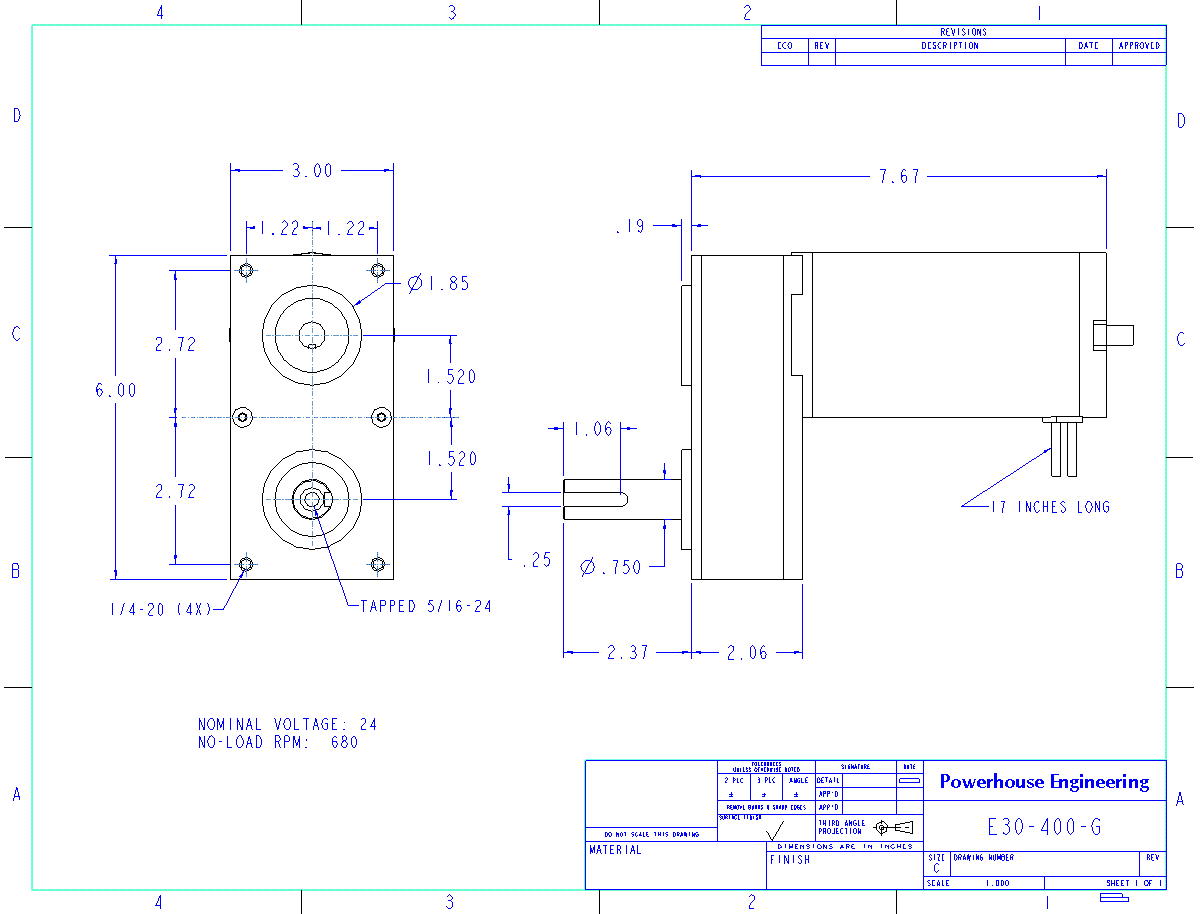

    Measurements
