This power supply will deliver 5A and 12V constant.Input: 110V-240VOutput: 12v and up to 5AIncludes power cord.Output is 5.5mmx2.5mm barrel connector.0-FT-PS5A12V

This D2822/17 Brushless Outrunner is what isused in the FingerTech Viper Vertical and Horizontal Spinner Add-Ons. Its size and power make it ideal for antweight robot weapons.Specifications:KV: 1100rpm/VMax Voltage: 7.2V-11.1V (2S-3S)Max Watts: 102WMax Current: 9.9AMax Resistance: 0.192ΩWeight: 41g (1.44oz)Motor Diameter: 28mm (1.10in)Motor Length: 21.35mm (0.84in). 25.66mm (1.01in) to end of hub extension.Wire Length: 56mm (2.2in)Plug Type: 3.5mm female bullet connectorsShaft Diameter:...

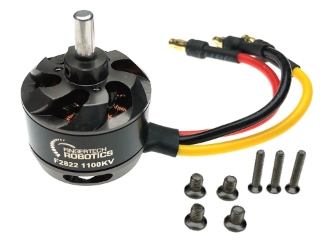

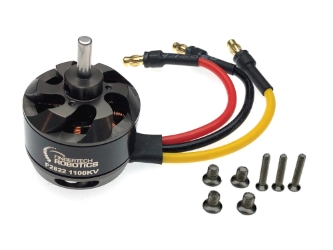

This F2822/17 Brushless Outrunner is what is used in the Viper Vertical and Horizontal Spinner Add-Ons (after June 2020). Its size and power make it ideal for antweight robot weapons.Specifications:KV: 1100rpm/VRPM @ 2S: 8140rpmRPM @ 3S: 12,210rpmMax Voltage: 7.2V-11.1V (2S-3S)Max Watts: 102WMax Current: 9.9AMax Resistance: 0.192ΩWeight: 43g (1.52oz)Motor Diameter: 28mm (1.10in)Motor Length: 21.35mm (0.84in). 25.66mm (1.01in) to end of hub extension.Wire Length: 56mm (2.2in)Plug Type: 3.5mm...

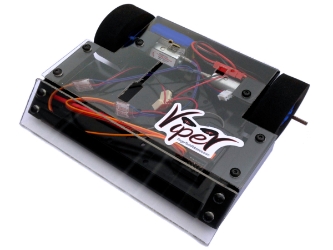

The Viper now uses our new and improved Twist Hubs! It also includes a JST-to-9V Adapter cable so you can power it with a 9V battery instead of a lipoly battery (saving you the cost of battery and charger until you are ready to upgrade!).The Viper Combat Robot Kit comes with everything you need to get started in combat robotics.- The custom-formed 6061-T6 Aluminum chassis has plenty of strength and space for additional components and upgrades.- A 6-Channel radio transmitter and receiver pair...

Add a vicious horizontal spinner weapon to your Viper Combat Robot!Kit INCLUDESMotor: D2822/17 1100KV Brushless Motor + screwsController: 20A Brushless Speed ControllerHub: Blade Hub holds any blade 0-FT-VIPER-HSPIN Instructions

Take your Viper Combat Robot kit to the next level by adding a powerful servo-actuated lifting arm!Kit INCLUDESServo: GS-5515MG servo with FingerTech Servo MountsLift Arm: Spring steel Scoop and Linkage, Polycarbonate arms, threaded Crossbar, two 2x1 Mini NutStrip piecesScrews: Nine 4-40x0.25, eight 6-32x0.25 and four 6-32x0.5 screws plus hex wrench.Instructions: Detailed instructions with pictures.Specifications:Lift Height: 19cm (7.5in) - 90 degrees (can self-right from upside down!)Weight:...

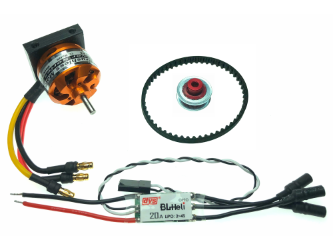

This Brushless Motor and ESC combo are perfect for spinning the FingerTech 1lb Beater Bar. Can be run on 7.4V, 11.1V, or 14.8V for up to 10k RPM! Includes motor, mount, speed controller, and S3M pulley/belt.Specifications:Pulley reduction: 1.73:1Beater bar speed @ 7.4V: 4,700RPM theoreticalBeater bar speed @ 11.1V: 7,050RPM theoreticalBeater bar speed @ 14.8V: 9,400RPM theoreticalTotal Weight: 60grams (2.12oz)Beater bar to motor shaft center-to-center distance: 51.5mm (2.03in)Includes:1 -...

Lite Flites are the most popular robot wheels due to their very light weight, shock-absorbtion and surprisingly good traction. Their one flaw is the plastic hub that is difficult to secure to a motor shaft. Well, not any more!With Snap Hubs, you can easily and securely mount these foam tires to your robot.Specifications:- Anodized 6061 aluminum for high strength and low weight.- The foam tire is held tightly by a custom washer, and features a recess to prevent the snap ring from coming off...

Lite Flites are the most popular robot wheels due to their very light weight, shock-absorbtion and surprisingly good traction. Their one flaw is the plastic hub that is difficult to secure to a motor shaft. Well, not any more!With Snap Hubs, you can easily and securely mount these foam tires to your robot.Specifications:- Anodized 6061 aluminum for high strength and low weight.- The foam tire is held tightly by a custom washer, and features a recess to prevent the snap ring from coming off...

Lite Flites are the most popular robot wheels due to their very light weight, shock-absorbtion and surprisingly good traction. Their one flaw is the plastic hub that is difficult to secure to a motor shaft. Well, not any more!With Snap Hubs, you can easily and securely mount these foam tires to your robot.Specifications:- Anodized 6061 aluminum for high strength and low weight.- The foam tire is held tightly by a custom washer, and features a recess to prevent the snap ring from coming off...

Lite Flites are the most popular robot wheels due to their very light weight, shock-absorbtion and surprisingly good traction. Their one flaw is the plastic hub that is difficult to secure to a motor shaft. Well, not any more!With Snap Hubs, you can easily and securely mount these foam tires to your robot.Specifications:- Anodized 6061 aluminum for high strength and low weight.- The foam tire is held tightly by a custom washer, and features a recess to prevent the snap ring from coming off...

The B6 PRO Charger is a multifunctional, highly portable charger/discharger and balancer for Li-xx, Ni-xx and Lead Acid batteries.It is packed with features that enable it to charge and monitor the state of your battery packs.The B6 Pro is capable of charging up to 6 cell Lixx (1~15 Ni-xx) packs at 0.1~6.0 Amps. It will charge from 0.1 to 6.0 Amps and this charger can store the data for up to 5 batteries in its internal memory for your convenience.Features:- Microprocessor controlled-...

This bearing block can be used as a motor mount for 16mm gearmotors (such as our Spark motors) or as a simple bearing block for a 3mm shaft. The bearing works with the Spark Motors by aligning the mounting holes to the Spark mounting holes and offers additional shaft support. Specifications:- Height: 19.05mm (0.75in)- Width: 25.4mm (1.0in)- Thickness: 4.76mm (0.188in)- Weight: 5grams (0.18oz)- Includes pressed-in 3mm shielded ball bearing- Twelve 4-40 threaded holes for mounting in many...

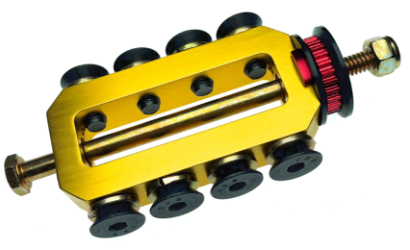

Destroy the competition with FingerTech's 1lb Beater Bar! This design has been proven in the 3lb class, taking home trophies in events all over the world. Now you can rule the Antweight class with this 1lb-scaled Beater Bar Assembly!Specifications:Sized for the 1lb Antweight class.Beater Length: 76.2mm (3in)26T pulley with Delrin flanges adds 9.4mm (0.37in) to length. Total length: 85.6mm (3.37in).Beater Height: 38.1mm (1.5in)Beater Thickness: 15.88mm (0.625in)Beater Material: 6061-T6...

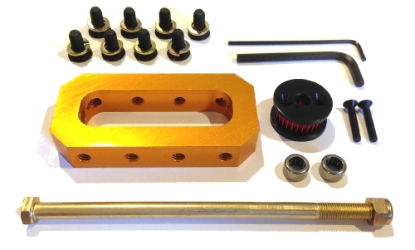

Destroy the competition with FingerTech's Beater Bar! Developed and used by three #1 ranked robots (from USA, UK, and Canada), this weapon really packs a punch! Specifications:Sized for the 3lb "Beetleweight" class.Beater Length: 106.7mm (4.2in)30T pulley with Delrin flanges adds 16.7mm (.657in) to length. Total 123.4mm (4.86in).Beater Height: 50.8mm (2.0in)Beater Thickness: 19.05mm (0.75in)Beater Material: 6061-T6 AluminumBeater Weight: 149grams (5.26oz) The bar has 4 holes each side...

FingerTech's Blade Hub is the best way to attach a blade to a shaft. It uses a flange nut to hold the blade tightly (like an angle grinder), meaning you can use off-the-shelf sawblades without needing to drill screw holes into hardened steel! Custom blades can be made stronger by not having those same mounting screw holes. The stepped design allows use of blades with different bore sizes. A clamp mount with two screws attaches the hub to your weapon motor shaft. (Remember to apply...

The C6D Mini Charger is a multifunctional, highly portable charger/discharger and balancer for Li-xx, Ni-xx and Lead Acid batteries.It is packed with features that enable it to charge and monitor the state of your battery packs.The C6D Mini is capable of charging up to 4 cell Lixx (6~8 Ni-xx) packs at 0.1~6.0 Amps. Internal power supply allows this charger to plug directly into the wall! No additional 12V supply needed.Features:- Microprocessor controlled- Individual cell balancing- LiPo /...

Cobra Minisumo Wheels are top-quality competition wheels.- The fiberglass-infused nylon hubs are designed with a ring of captive holes for locking the tire tread in place.- Tire tread composed of Shore A20 polyurethane makes these the highest traction wheels you can buy.- The wheel is designed to envelop a 16mm gearbox. Perfect where length is a concern. (Two Gold Spark motors with these wheels will fit into the 10cm width limit of minisumo events.)- An extra-long setscrew allows you to easily...

These anodized 6061 aluminum Flat Motor Mounts are used to face-mount motors to flat robot sides. Specifications:- Sold in pairs- Width: 38.1mm (1.5in)- Height: 31.75mm (1.25in)- Thickness: 1.63mm (0.06in)- 11mm hole pattern for Antweight motors such as Gold Spark, Silver Spark, etc. Uses 2-56 button head screws.- 17mm hole pattern for Beetleweight motors such as Kitbots 1000RPM, etc. Uses M3 countersunk screws.- 18mm hole pattern (not pictured, new revision) for Beetleweight motors such as...

LiteTech Treads (high-quality neoprene foam tires) mated with the popular Snap Hubs give you a lightweight, shock-absorbing, high-traction solution for transferring power to the ground. Unlike hobby airplane wheels, the diameter will always be accurate and the material won't change between batches.Note: The inner holes might be a little tight on the hubs. They fit, but you may want to drill them larger to make installation easier. These wheels come in packs of two. 1.00" Diameter .02 oz each,...

LiteTech Treads (high-quality neoprene foam tires) mated with the popular Snap Hubs give you a lightweight, shock-absorbing, high-traction solution for transferring power to the ground. Unlike hobby airplane wheels, the diameter will always be accurate and the material won't change between batches.Note: The inner holes might be a little tight on the hubs. They fit, but you may want to drill them larger to make installation easier. These wheels come in packs of two. 1.00" Diameter .03 oz each,...

LiteTech Treads (high-quality neoprene foam tires) mated with the popular Snap Hubs give you a lightweight, shock-absorbing, high-traction solution for transferring power to the ground. Unlike hobby airplane wheels, the diameter will always be accurate and the material won't change between batches.Note: The inner holes might be a little tight on the hubs. They fit, but you may want to drill them larger to make installation easier. These wheels come in packs of two. 1.25" Diameter .04 oz each,...

LiteTech Treads (high-quality neoprene foam tires) mated with the popular Snap Hubs give you a lightweight, shock-absorbing, high-traction solution for transferring power to the ground. Unlike hobby airplane wheels, the diameter will always be accurate and the material won't change between batches.Note: The inner holes might be a little tight on the hubs. They fit, but you may want to drill them larger to make installation easier. These wheels come in packs of two. 1.25" Diameter .05 oz each,...

LiteTech Treads (high-quality neoprene foam tires) mated with the popular Snap Hubs give you a lightweight, shock-absorbing, high-traction solution for transferring power to the ground. Unlike hobby airplane wheels, the diameter will always be accurate and the material won't change between batches.Note: The inner holes might be a little tight on the hubs. They fit, but you may want to drill them larger to make installation easier. These wheels come in packs of two. 1.50" Diameter .05 oz each,...
