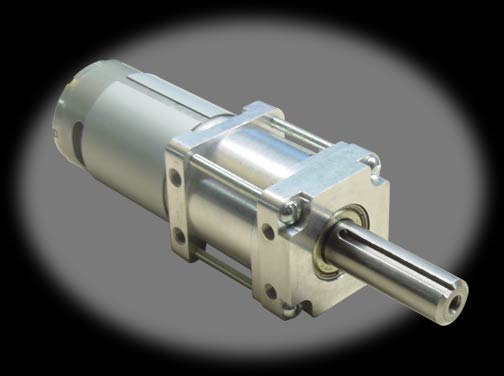

PDX26 - 26:1 Gearmotor

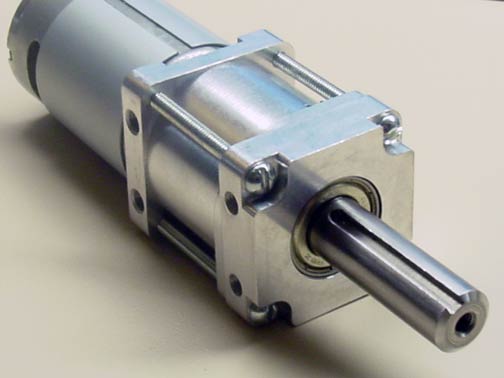

  • Keyway
  • PDX26 - 26:1 Gearmotor
Item #: PDX26
UPC: 01652052708
Price: $105.99
    Points to Purchase: 15142
    Availability: Back Order

    Quantity:

    Finally! A high powered gearmotor solution for hobbyweight robots. For this geared motor, we combined a rugged Banebots 16:1 gearbox with a powerful 550 size motor, resulting in a bolt-in ready gearmotor that will provide plenty of power at a price that won't break the bank. You can replace the motor with any RS-540, RS-545 or RS-555 or similar sized motor.

    TypePlanetary
    Stages2 - 5:1, 5:1
    Gear Material Steel
    No Load Speed: 900 rpm
    Nominal Voltage: 12V DC
    Maximum Voltage: 24V DC
    Amps @ nominal: 1.5 Amps
    Efficiency:45.33%
    Peak Power:0.55 hp
    Stall current: 148A
    Stall torque: 145 in-lb
    Weight: 16.05 oz (455 grams)
    Size:1.5" (38.1mm) square
    Length:4.16" (106mm)
    Shaft diameter:1/2" (12.7mm)
    Shaft length:1.5" (38mm)
    Shaft Key 0.125in. (3.2mm)
    Shaft End Tap #10-32
    Mounting Holes (8) #10-32

    0-PDX26


    Gearbox Dimensions
