AmpFlow motors are designed to give the highest level of performance possible in a brushed DC motor. This is achieved by advanced design and the use of less expensive ferrite magnets.
The economy E30 motors are designed to give good performance at the lowest possible price.
These motors are used in diverse applications including robots, industrial motion control, factory automation, semiconductor manufacturing, motorized scooters, go karts, and electric bicycles.
| Specs |
| Diameter | 3.1 in. |
| Length | 5.8 in. |
| Peak Horsepower | 2.1 |
| Stall Torque | 1500 oz-in |
| Efficiency | 79% |
| RPM at 24V | 5700 rpm |
| Shaft Diameter | 1/2 in. |
| Shaft Length | 2 in. |
| Keyway | 1/8 in. |
| Capacitors | No |
| Magnet Type | Ferrite |
| No Load Amps | 3.2 Amps |
| Resistance | 0.089 Ohms |
| Kt | 5.63 oz-in/Amp |
| Kv | 240 rpm/Volt |
| Weight | 5.9 lbs. |
0-E30-400-24

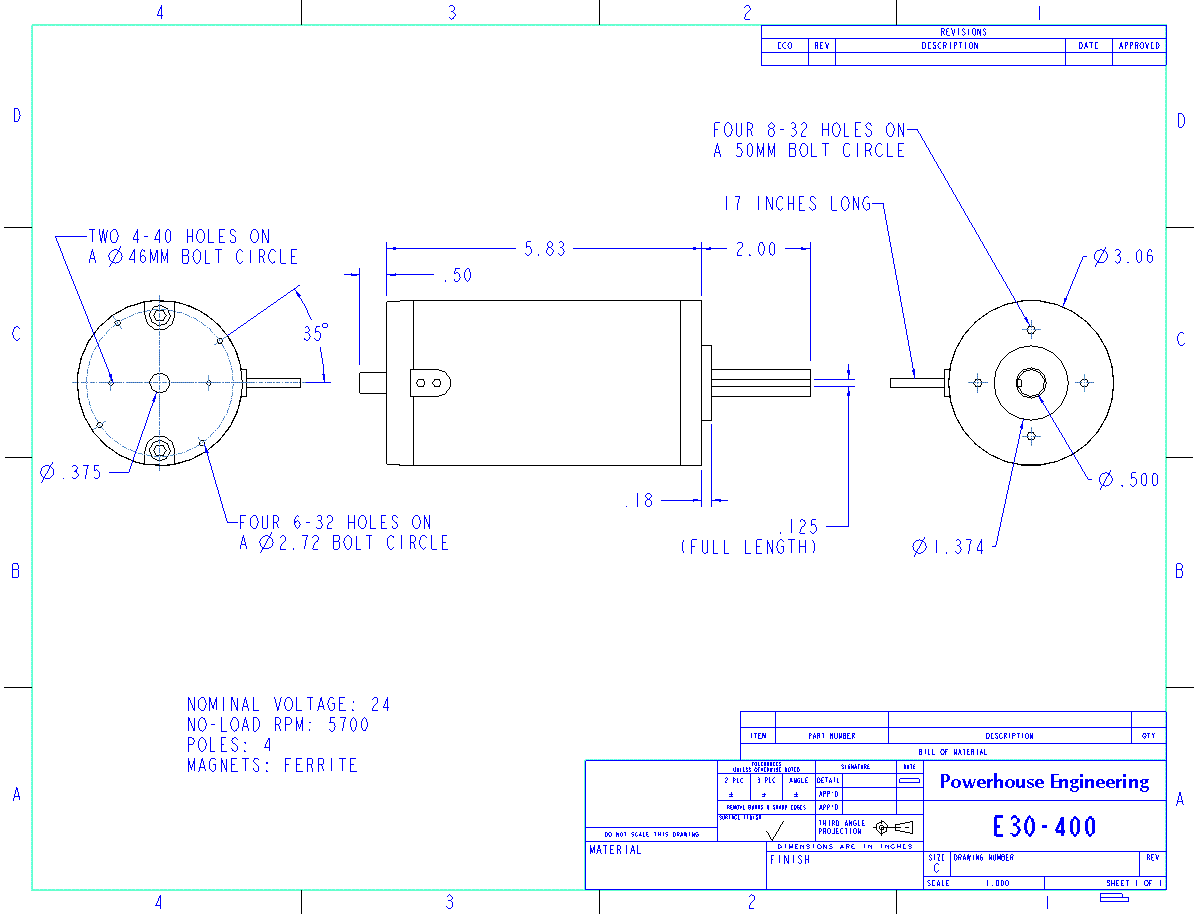

Drawing
