Item #: ft-spark16-50
UPC: 01523351718
Price: $18.99
    Points to Purchase: 2713
    Availability: In Stock
    Usually ships In 1-2 Business Days

    In Stock: 16
    Quantity:

    These are what your robots have been waiting for. These custom engineered robot drive motors are designed to handle the rigor of combat without breaking, and they won't hurt your wallet either! These motors make it super simple to get a robot moving! Just pick up a pair of Lite Flite wheels and Lite Hubs to mount them, solder on a pair of tinyESCs and your motors are ready to go!

    Features
    The extra-long 3mm shaft is triple-supported internally so that wheels can be mounted directly.
    Having the same face mount pattern as the now-obsolete BaneBots 16mm gearmotors means they can be a direct drop-in replacement for all your combat-worn BaneBots motors.
    Spur gear reduction motor with mabuchi FK-050 motor.
    Several different gear ratios of 20:1, 35:1, 50:1, 63:1, 86:1, 115:1, 150:1, 250:1 and 360:1
    At only 28grams (0.99oz), these are a lightweight and still powerful motor.

    Motor Specs
    Operating Voltage4.5V-22.2V (>7.4V decreses motor life)
    Nominal Voltage 6V DC
    No Load RPM 11530 RPM
    No Load Current 0.05A
    Stall Current 1.3A
    Stall Torque 0.0461 kg-cm (0.64 oz-in.)
    Kt0.0352 kg-cm (0.49 oz-in./A)
    Kv1573 rpm/V
    Efficiency52%
    RPM at Peak Efficiency 9100
    Current at Peak Efficiency 0.34A
    Gearbox Specs
    Output RPM (at 6V)189 RPM
    Output Torque (at 6V)26.19 oz-in (1886 g-cm)
    Physical Specs
    Gearbox Length 11.6mm (0.455in.)
    Total Length 40.3mm (1.59in.)
    Gearbox Diameter15.5mm (0.61in.)
    Shaft Diameter 3mm (0.12in.) with flat along length
    Shaft Length 38mm (1.5in.)
    Mounting Holes 2; #2-56 spaced 11mm apart
    Weight28g (0.99oz)


    Note - Do not stall this motor! you will damage the output gear stage!

    0-FT-SPARK16-50


    Solidworks File

    .STEP File

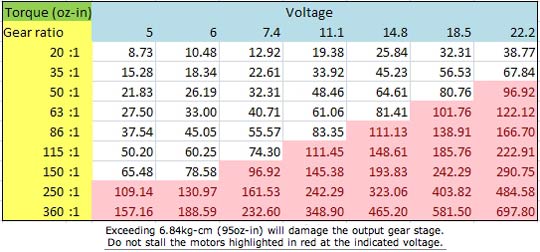

    Maximum Torque

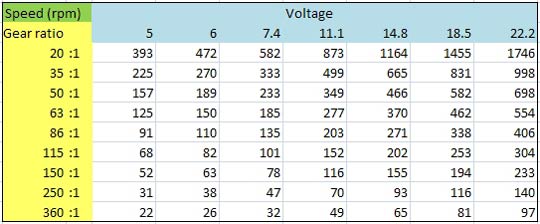

    No Load Speed
