These are what your robots have been waiting for. These custom engineered robot drive motors are designed to handle the rigor of combat without breaking, and they won't hurt your wallet either! These motors make it super simple to get a robot moving! Just pick up a pair of Lite Flite wheels and Lite Hubs to mount them, solder on a pair of tinyESCs and your motors are ready to go!
For strenuous conditions (such as robot combat), we recommend using Loctite on the screws that hold the gearbox to the motor. This will ensure they cannot separate during competition!
Extra-long 3mm shaft for mounting wheels directly with the option to use a bearing support on the wheel's far side.
Same 11mm face mount pattern as Gold Spark motors.
All-metal spur gear reduction gearhead mated to a mabuchi FK-050 motor.
Several different gear ratios of 22.2:1, 50:1, 83.3:1, 100:1, 200:1, 300:1, and 600:1
At only 28grams (0.99oz), these are a lightweight and still powerful motor.
|Motor Specs - Mabuchi FK-050 motor without gearbox |
|Operating Voltage ||4.5V-22.2V (>7.4V decreses motor life) |
|Nominal Voltage ||6V DC |
|No Load RPM ||11530 RPM |
|No Load Current ||0.05A |
|Stall Current ||1.3A |
|Stall Torque ||0.0461 kg-cm (0.64 oz-in.) |
|Kt ||0.0352 kg-cm (0.49 oz-in.) |
|Kv ||1573 rpm/V |
|Efficiency ||52% |
|RPM at Peak Efficiency ||9100 |
|Current at Peak Efficiency ||0.34A |
|Gearbox Specs |
|Output RPM (at 6V) ||283 RPM |
|Output Torque (at 6V) ||17.45 oz-in (1.26 kg-cm) |
|Physical Specs |
|Gearbox Length ||12.7mm (0.50in.) |
|Gearbox Diameter ||16mm (0.63in.) |
|Shaft Diameter ||3mm (0.12in.) with flat along length |
|Shaft Length ||38mm (1.5in.) |
|Mounting Holes ||2; #2-56 spaced 11mm apart |
|Weight ||29g (1.02oz) |
Note - For strenuous conditions (such as robot combat), we recommend removing the gearbox and ensuring that the motor vent hole does not line up with a gearbox pin. If it does, simply rotate the gearbox 180 degrees and reattach. Use Loctite on the screws that hold the gearbox to the motor. This will ensure they cannot separate during competition!

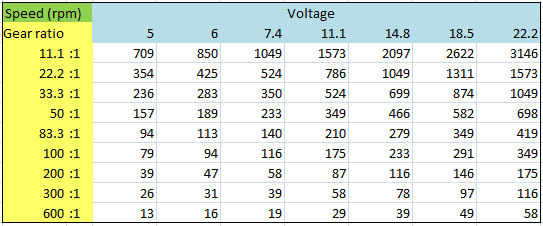

No Load Speed @ Gear Radio/Voltage

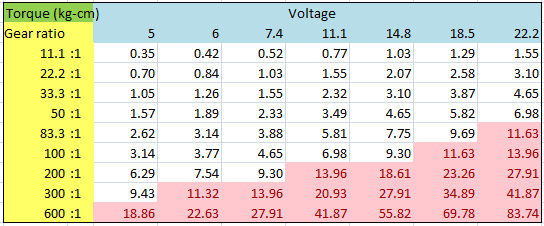

Maximum Torque @ Ratio/Voltage
