0-FT-SSPARK-100 FingerTech Silver Spark 100:1 Gearmotor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These are what your robots have been waiting for. These custom engineered robot drive motors are designed to handle the rigor of combat without breaking, and they won't hurt your wallet either! These motors make it super simple to get a robot moving! Just pick up a pair of <a href="lite_flite_wheels.html" target="_top">Lite Flite</a> wheels and <a href="0-FT-LITE-HUBS.html" target="_top">Lite Hubs</a> to mount them, solder on a pair of <a href="0-FT-TINYESC-V2.html">tinyESCs</a> and your motors are ready to go! </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">For strenuous conditions (such as robot combat), we recommend using Loctite on the screws that hold the gearbox to the motor. This will ensure they cannot separate during competition!</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Extra-long 3mm shaft for mounting wheels directly with the option to use a bearing support on the wheel's far side.<br />
Same 11mm face mount pattern as Gold Spark motors. <br />
All-metal spur gear reduction gearhead mated to a mabuchi FK-050 motor. <br />
Several different gear ratios of <a href="0-FT-SSPARK-11.html">11.1</a>, <a href="0-FT-SSPARK-22.html">22.2:1</a>, <a href="0-FT-SSPARK-50.html">50:1</a>, <a href="0-FT-SSPARK-83.html">83.3:1</a>, <a href="0-FT-SSPARK-100.html">100:1</a>, <a href="0-FT-SSPARK-200.html">200:1</a>, <a href="0-FT-SSPARK-300.html">300:1</a>, and <a href="0-FT-SSPARK-600.html">600:1</a><br />
At only 28grams (0.99oz), these are a lightweight and still powerful motor. </font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Motor Specs - Mabuchi FK-050 motor without gearbox</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.5V-22.2V (&gt;7.4V decreses motor life) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V DC </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load RPM </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11530 RPM </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.05A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0461 kg-cm (0.64 oz-in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kt</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0352 kg-cm (0.49 oz-in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kv</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1573 rpm/V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">52%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM at Peak Efficiency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9100</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Current at Peak Efficiency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.34A</font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Gearbox Specs</font></td>
</tr>
<tr>

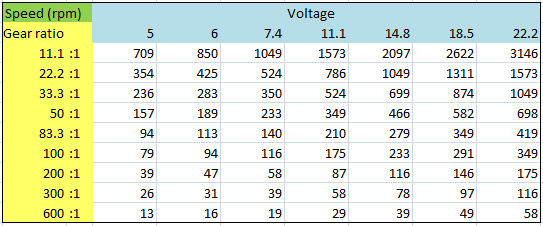

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output RPM (at 6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">94 RPM</font></td>
</tr>
<tr>

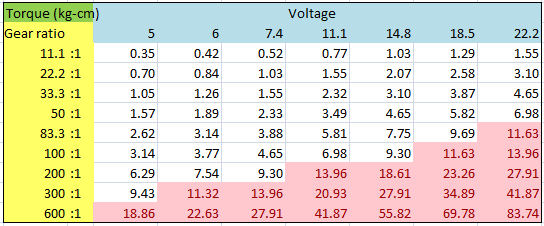

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Torque (at 6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">52.39 oz-in (3.77 kg-cm)</font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Physical Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gearbox Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.7mm (0.50in.) </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gearbox Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">16mm (0.63in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3mm (0.12in.) with flat along length </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">38mm (1.5in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Mounting Holes </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2; #2-56 spaced 11mm apart </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">32g (1.13oz) </font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Note - For strenuous conditions (such as robot combat), we recommend removing the gearbox and ensuring that the motor vent hole does not line up with a gearbox pin. If it does, simply rotate the gearbox 180 degrees and reattach. Use Loctite on the screws that hold the gearbox to the motor. This will ensure they cannot separate during competition!</font></p>

FingerTech Silver Spark 100:1 Gearmotor
The new Silver Spark line of motors has the same diameter gearhead as the Gold Sparks, but the gears are a larger pitch. This means less worrying about stripping teeth in your bigger or heavier applications!

$24.49
Robot MarketPlace - FingerTech Silver Spark 100:1 Gearmotor

Motors
    Spark Motors


Click photo to enlarge.

FingerTech Silver Spark 100:1 Gearmotor
Part# 0-FT-SSPARK-100


No reviews yet.

$24.49
QTY
Stock Status: In Stock
