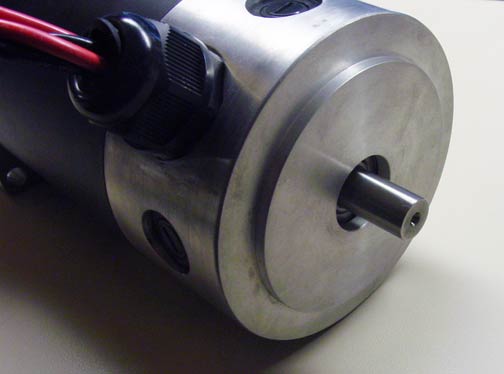

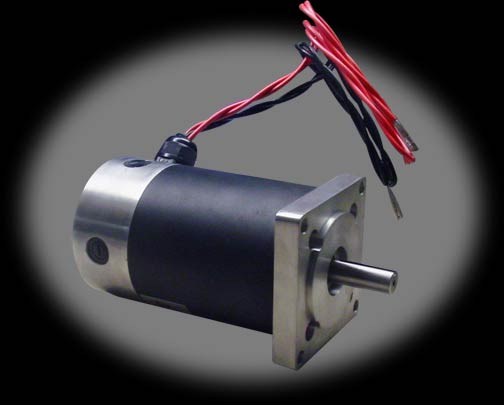

One of the most popular high output motors available. This very successful motor is for the robot builder that is not kidding around. Serious power for a serious weapon or drive system of your bot. This is the motor that has powered many BattleBots to victory!

4" Diameter, 6.9" long

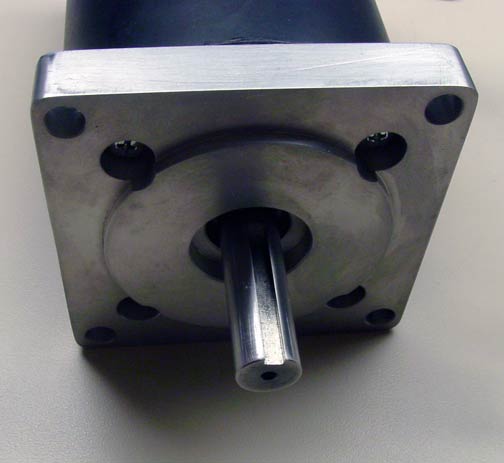

5/8" diameter shaft with 3/16" keyway, 1.75" long
24V (can be run higher)
3.8 horsepower
3840 oz-in Torque
Max current 340 Amps
84% efficiency
4000rpm
11.9 lbs
Ferrite magnets

Tech Specs & Tips:

Detailed Drawing:

3DIGS File:

3D Rhino File:
