MTP-15 Mini Track Pod
  • in the wild3000-24
  • Closeup5000EN-24
  • wiring
  • alternate view
  • with platform
  • MTP-15 Mini Track Pod
Spotlight!
Item #: MTP-15
UPC: 04120641697
Price: $995.00
    Points to Purchase: 142143
    Availability: Available
    Usually ships In 3-9 business days (sooner, if drop-shipped)
    Speed Ratio:

    COLOR:


    Update price
    Quantity:
    NOTE: these Mini Track Pods are sold individually. For most vehicles, you will need TWO pods, so plan your purchase accordingly. The pods are symmetric and can be used as either right or left. It is only a matter of flipping the chain cover over to the other side.

    The MTP-15 is a basic, self-contained robotic track unit. Each unit can carry 7.5 pounds of payload or 15 pounds of payload when assembled in pairs. The MTP-15 was designed with modularity in mind, allowing you to quickly connect 2 or more pods together using 1-inch diameter tubing or rod. These units are a compact solution to getting your project moving quickly.

    The MTP-15 is a strong 2-piece clamshell design, constructed of anodized CNC billet aluminum, and custom continuously molded track. The unit comes complete with high torque 32mm motor, motor controller, and power/control input lead utilizing a single connector. The only thing necessary for operation is a 24VDC input capable of sourcing 15 amps for one pod or 30 amps for a pair of pods, and a PWM control signal from a device such as an RC radio controller, micro controller, or computer. 12VDC motor options are available.

    The MTP-15 can be outfitted with high torque or high-speed drive motors depending on your application requirements.

    Specifications:
    Dimensions: 15.125" x 2.50" x 3.75"
    Weight: 4/5lb (each), 9lb (pair)
    Payload: 7.5.b (each), 15lb (pair)
    Speed: 3.2 ft/sec
    Construction: Anodized CNC Machined Billet Aluminum
    Power Requirements: 24VDC input required (battery not included)
    Run Time: Approximately 1.5 hours of continuous operation on 24V 3.2Ah battery
    Motor Details: 24VDC coreless brushed planetary gear motor, 10 in-lb continuous, 65 in-lb stall, 1.5 amp continuous, 15 amp stall (each)
    Track/Sprocket: Custom Molded Track and Sprockets
    Control: Custom high current, high frequency 7 amp continuous motor driver. Motor drivers can be controlled using a standard hobby-type PWM signal.
    Motor controller also has an on-board 5V, 1 amp regulator that will power an R/C radio receiver or a microcontroller such as an Arduino.

    Comes with 18'' long heavy duty, molded multi-pin connector and cable for power and control input.
    Features: Easily accessible track tensioners.

    Each pod comes with an molded industrial multi pin connector and wire lead. Each pod also comes pre-outfitted with 1'' diameter tube clamps so two pods can be joined together easily with 2 pieces of 1'' diameter tubing.

    Comes in Red, Black or Gun Metal Gray anodized finish.

    ML-MTP-15

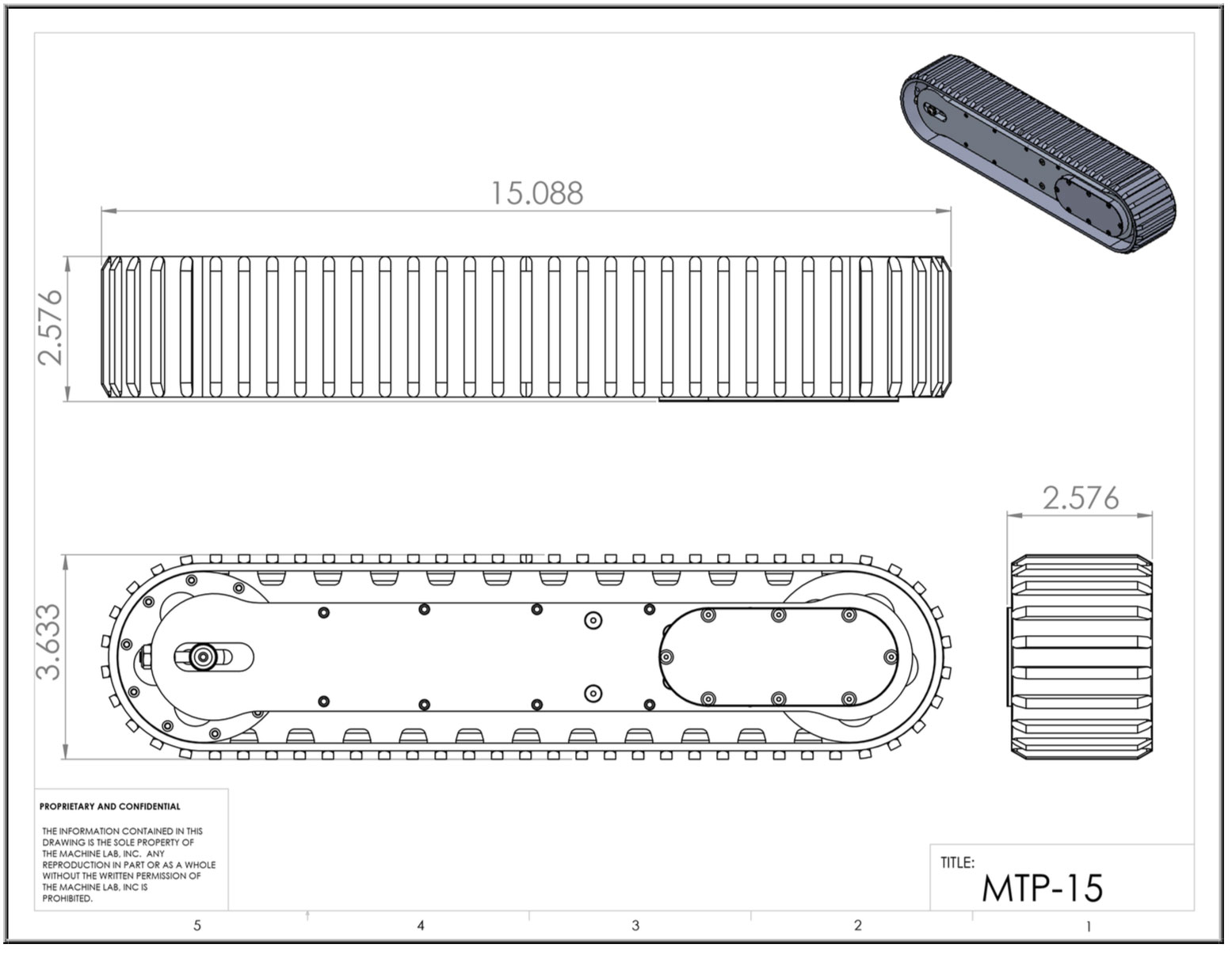

    Dimensions

    Spec Sheet
