0-GM19 35:1 Micro Geared Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This 35:1 micro geared motor is a bit larger than our other ones. Nearly twice
the weight, this is the one to use if you forsee needing a more durable drive
motor. Its fast too! 1050 rpm makes it the fastest micro geared motor we
sell. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">NOTE: The 4.5mm long shaft is too short to use with our <a href="0-MHUB07.html">Mini Aluminum Hubs</a>. Use the <a href="0-FT-LITE-HUBS.html">FingerTech Lite Hubs</a> instead.&nbsp;</font></p>
<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#333333">
<tr valign="top">
<td><b><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specifications
at 4.5V:</font></b></td>
<td><div align="center"><font color="cccccc"><b><font size="2" face="Arial, Helvetica, sans-serif">35:1
- GM19</font></b></font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Typical
operating voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.7-5.0VDC</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No load speed</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1050&nbsp;rpm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No load current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">130 mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">load
current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">500
mA +/- 30% </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Starting torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.0
oz-in (216 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">True gear
ratio </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">35:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft
Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">stubby,
3mm D-style 4.5mm long</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.47&quot; x
0.59&quot; x 1.18&quot; (12mm x 15mm x 30mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.53 oz (15
grams)</font></td>
</tr>
</table>

35:1 Micro Geared Motor
Slightly larger and more powerful than our other micro geared motors, this is a durable one!

$18.99
Robot MarketPlace - 35:1 Micro Geared Motor

Motors
    Small Geared Motors

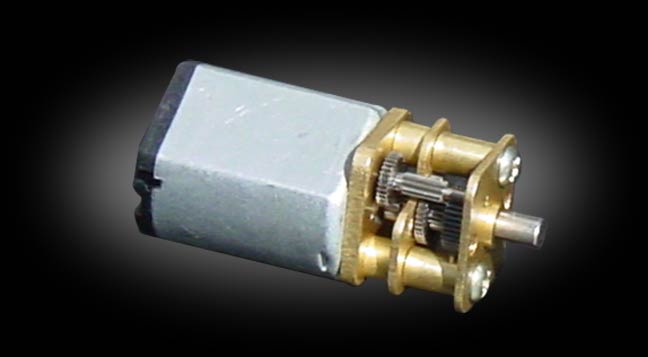

Click photo to enlarge.

35:1 Micro Geared Motor
Part# 0-GM19


No reviews yet.

$18.99
QTY
Stock Status: Discontinued, but Limited Quantities in stock
