    The OSMC is a high-power H-bridge circuit designed to control permanent magnet DC motors. It was designed expressly as a motor control for robot combat in competitions such as BattleBots™, Robot Wars™, Robotica™, and the like. The attributes of a controller for such an environment are much different than normally found in commercial or industrial motor control units. A robotic combat controller must have very high short-term power handling capability along with light weight and simple interfacing. It must drive a wide variety of motors and be easy to mount and secure from the shock and vibration of combat. The ideal controller should also be low-cost and easy to repair if needed.

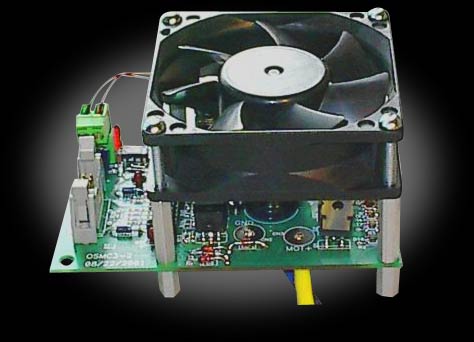

    Unlike most motor controls the OSMC does not use a heavy heatsink to extract heat from the MOSFETs. Rather, it uses a cooling fan to blow air across the board. This removes more heat more quickly than a plate type heatsink as has lower weight. The fan itself is a commonly available 80mm square computer cooling fan. Either a 12V or 24V fan may be installed on the OSMC. Mounting holes are provided at the correct spacing to mount the fan directly over the MOSFETs for maximum cooling efficiency.

    The OSMC is a "simple" H-bridge power amplifier. It does not have any on-board logic to interpret RC or other commands. An external logic interface is required to translate command inputs into the PWM signals needed to drive the board. This increases system complexity somewhat but also increases flexibility as the OSMC board may be driven by any microcontroller or other signal source that can provide PWM and Enable logic. The OSMC project has developed the Modular OSMC Brain board to complement and complete the OSMC power board. This microcontroller-based interface board accepts RC signals and performs the conversion to PWM for two OSMC boards.

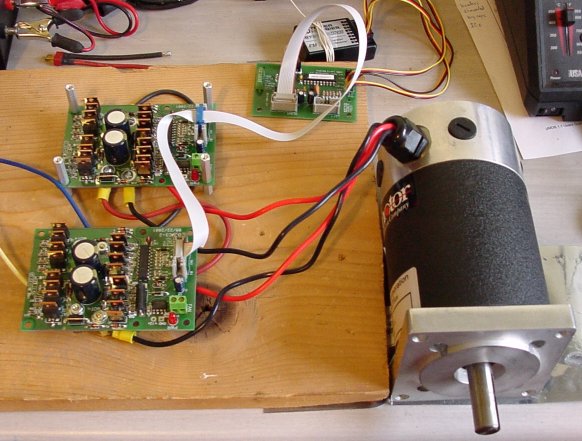

    One of the major advantages of separating the power section of the controller from the logic interface section is to allow the power units to be paralleled for special applications. One exciting application of this is to use two OSMC boards on a single interface channel to control high-powered four-brush motors such as the Ampflow or Astroflight™ motors. By using a special interface cable the OSMC can control these 4-brush motors at twice the current of a single power unit. That gives a continuous current capability of over 300A! This image shows 2 OSMC boards driving a four inch Ampflow Motor. Stall testing with this motor and 24V of Hawker batteries showed no appreciable heating of the OSMC boards.

    The method used by the OSMC/µRRC is superior to using two R/C-based controllers such as IFI Victor/Thor or Vantec on a four-brush motor because with the OSMC the two power units are driven by exactly the same drive signals and they will switch in perfect synchronization. Two RC-based controllers connected using a Y-cable to will not have the controllers synchronized due to differences between them. Clearly the OSMC is the way to go for maximum power handling on these large powerful motors.

    For some related downloadable files regarding the OSMC, see the download page.

    Supply voltage13V to 50V
    Output Current (continuous)160A
    Output Current (surge)>400A
    Weight0.6 lb
    MOSFETs16 ea. IRF 1404 or 1405
    On Resistance.0010 ohm max 1404
    .0013 ohm max 1405
    Cooling40 CFM fan
    Bridge DriverIntersil HIP4081A
    Logic Interface10-pin dual-row header
    Power Supply12V .5A regulator
    Current LimitingOptional Add-on
    ConnectorsSolder pads for up to 10 ga wire
    EnclosureUnder development

    Please note: These controllers are now built upon receipt of order. This may take up to 7 days before the controller is shipped.
