| $199.99 |
|
|
Stock Status:
In Stock |
|
| |
|
Building Instructions |
| Technical Information |
|
| Vex
Robotics |
Description |
| RC
Frequency |
27
MHz |
| Camera
Frequency |
2.4
GHz |
| Transmitter
Battery |
9
Volt (not included) |
| Receiver
Battery |
6
AA-Batteries (not included) |
| Motor
Ports |
6
VB-1 Motor ports (0 volts to battery voltage - depending on speed) |
| AUX
Ports |
2
AUX Ports - supplied power to accessories |
| Operating
Range |
150
foot - max, clear line of sight |
| Wheel
Base Length |
11
inches (approx) |
| Length
(including claw) |
19
inches (approx) |
| Wheel
Base Width |
10
inches (approx) |
| Height |
13.5
inches (antenna sleeve) / 18.5 inches max with arm raised |
| Camera
Battery Type |
No
batteries required, power is supplied from a Vex Controller |
| Camera
Receiver Battery |
4
AA-batteries required (not included) |
| Camera
Dimensions |
2.9
in x 1.8 in x 3.0 in (LxWxH) |
| Receiver
Dimensions |
4.0
in x 2.8 in x 2.9 in (LxWxH) |
| Camera
Weight |
0.15
lbs. |
| Camera
Receiver Weight |
0.25
lbs. |
| Camera
Wiring |
Black
- ground; Red - +voltage |
| Camera
Receiver Wiring |
RCA
Cable, Yellow for Video / White for Audio |
|
|
|

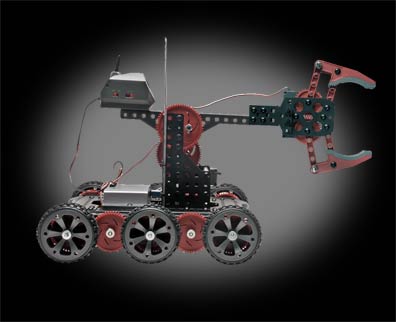

VEXplorer Kit
Part# VEX-VRC-KIT-1
VEXplorer is the ideal robot kit for the novice builder. Complete with detailed
step-by-step plans, this almost-ready-to-run kit comes with pre-assembled modules
making it quick and easy to build.
Compatibility with Vex Products
The VEXplorer is the first product of the new Vex-RC product line (Vex-Blue).
The Vex-Blue Transmitter, Vex-Blue Receiver, and the Vex-Blue Motor Module
VB1 are NOT compatible with the current Vex product line (Vex-Red). Also Sensors
and Servos can NOT be used with a Vex-Blue Receiver. The Vex-Blue Receiver
is not programmable.
All the VEXplorer Structure, Hardware and Motion parts are completely compatible
with all other Vex Structure, Hardware and Motion parts and pieces and vice-versa.
Use these Vex products to build endless robots.
Includes
Spycam that can broadcast to your TV, with sound
Gripper arm
Radio Controlled
Over 300 parts including
Spare/Replacement parts sold separately
Some components compatible with original Vex systems
No Programming Kit needed
FREE SolidWorks Student Design Kit (XP Compatible only)
|
| |
