VEX-SWERVE VEX Robotics Swerve Drive Kit <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The swerve drive kit lets you build a unique drive and steering configuration
for your VEX robot. Get unmatched maneuverability and increased versatility
through drive pods which can be configured with up to 360 degrees of rotation.</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Technical
Info</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Tire
Sizes</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.75in</font> </tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Swerve
Brackets</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">C-bracket with 5 x 5 square hole pattern<br>
-Mounts on 60-tooth pivot gear<br>
-1.5in module width<br>
-3.75in tall module</font></td>
</tr>
</table>
<p>&nbsp;</p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>

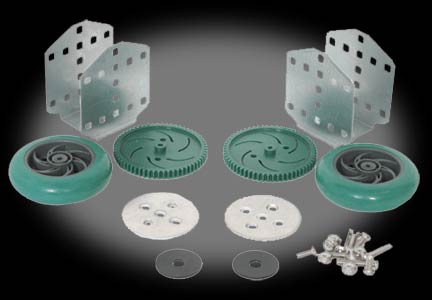

<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">List
of Contents </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Quantity</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Description</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Steel
Swerve Brackets</font>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Swerve
Thrust Bearings</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Swerve
Pivot Washers</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sets
of Pivot Hardware (8-32 x 1in Screw with Nylock Nut)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">60
Tooth Gears</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Small
Vex Wheels</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sets
of thrust bearing mounting hardware (8-32 x 0.5in flat head screw
(2x) with Nylock Nuts (2x))</font></td>
</tr>
</table>
<p>&nbsp;</p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td colspan="2"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Additionally
Required Parts</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Quantity</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Description</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Delrin
Bearing Flats</font>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Vex
Motors</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Vex
Short Motor Mounting Screws</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Vex
Long Motor Mounting Screws</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sets
of Vex Bearing Mount Hardware/8-32 x 0.5in Screw (2x) with Keps
Nuts (2x)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Vex
2in Shafts</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Vex
Shaft Collars</font></td>
</tr>
</table>

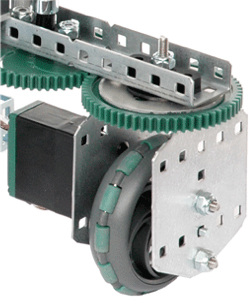

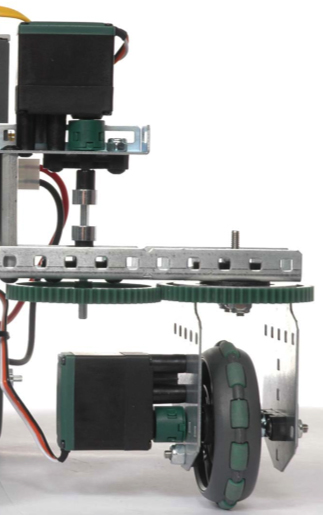

Note: Alt views are pictured with the Omni Directional Wheel Kit.
