RC Gear
        RC Radios- 12 Channel


Click photo to enlarge, double-click to shrink.

$1498.99
QTY
Stock Status: Available


FASST Features:
-Futaba's FASST (Futaba Advanced Spread Spectrum Technology) shifts very quickly virtually eliminating signal conficts and interruptions unlike other 2.4GHz systems that only stay on one or two frequencies
-Dual antenna diversity enables FASST system to automatically and seamlessly select the best reception between the two antennas built into the receiver ensuring that the aircraft stays under constant control of transmitter regardless of altitude
-Pre-Vision Packet Screening technology scans incoming data for potential problems and applies sophisticated error correction techniques for solid impenetrable link with model
-Easy Link system features a unique ID code in the transmitter that links to the receiver insuring that receiver only follows commands from this transmitter-with over 134 million possible codes there is no chance for a conflict
-No hassle Fail Safe programmed through transmitter-no complicated set-up steps or binding plugs
-When performing a ground check, the Power Down function allows modeler to reduce power from up to 50+ paces away-like retracting the antenna on a conventional transmitter
-Purpose built custom IC chips for key functions; no off-the-shelf IC chips

ATTENTION Robot Builders:
This radio system DOES have a programmable failsafe on ALL channels! This is important for many of the robot competitions that require a failsafe for all drive and weapon channels of a robot. Several other low-cost 2.4Ghz systems do not have this ability, but this feature comes standard on this model!

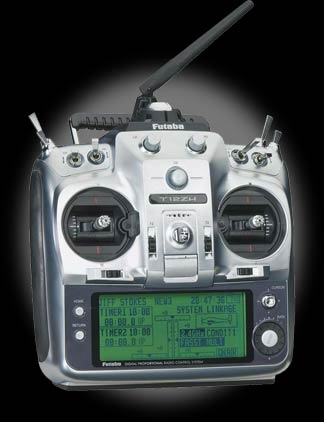

Futaba 12Z FASST 2.4GHZ Radio System
Part# TX-FUTK9300

The wait is over! Futaba's 12Z is now available on 2.4GHz Ñ combining one of the most sophisticated airplane systems ever produced with the incredible response, precision and glitch-free reliability of 2.4GHz. For the pilot who demands the utmost in speed and accuracy as well as features and performance, this radio is truly the best of the best!

The Futaba 12ZAP shares many features with the 14MZ such as Dual Internal Processors, Real-Time Response with 2048PCM, Fully Synthesized Receiver, Servo Grouping, Variable Dual Rates and Quad-Bearing Gimbals. It does NOT include servos.

General Features:
-Dial-N-Key jog dial with joy stick button allows cursor movement in four directions for very user friendly programming
-PCM G3 2048 resolution is "backwards compatible" with 1024 PCM, and FM/PPM
-Supports 13 different wing types, 3 tail types and 3 motor types
-Supports eight flight conditions (seven plus the default)
-Stores memory for up to twenty-five models
-245 model memory available with optional 32MB Compact Flash Card available separately
-Six factory-set Variable Dual Rate (VDR) curves can be assigned to any function in any flight condition configuration
-Variable Dual Rates (VDR) and Expo can be combined so they are automatically activated when a function is activated, no program mixing required
-Dual Internal Processors allow one processor to be devoted to flying functions while the other processor focuses on non-flight functions such as input and communications
-7.4V 2200mAh Lithium Ion transmitter battery for long operating times

R6014FS Receiver:
-Retains G3 2048 resolution and Futaba Real Time Response from the 72MHz version.
-Simple one-touch binding - no plugs to mess with or lose
-A full range system for all aircraft from giant scale to Park Flyer applications-no need to buy separate receiver for specific aircraft
-Dual Antenna Diversity allows 2.4GHz FASST Futaba transmitter to select the best reception between the two receiver antennas with no signal loss
-Rubber grommets installed where antennas exit to eliminate stress and fraying of the two antenna wires

Servo Grouping:
-Multiple servos controlling a single function can be set up through the transmitter and then plugged into differently adjustable receiver channels (even non-consecutively) without needing a separate servo synchronizer for mixing.
-Quad-Bearing Gimbals for smoothest motion and response, stick tension and detent are adjustable
-Seven color LED indicator

Includes:
-12ZAP Synthesized Transmitter
-FASST TM-14 Module
-R6014FS Receiver
-FLT2F2200 7.4V 2200mAh Lithium Ion Transmitter Battery
-LBC-1D5 Lithium Ion Transmitter Battery Charger
-NR4F NiCd 1500mAh Receiver Battery
-FBC-32B Wall Charger for Receiver Battery
-DSC Cable
-Switch Harness with Charge Cord
-Padded Aluminum Case with two Keys
-Woven Orange Neck Strap
-One each 1.5mm and 2.5mm Hex Wrenches
-Instruction Manual
