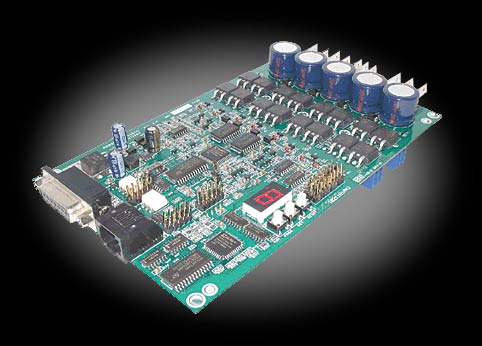

RoboteqŐs AX3500 is designed to convert commands received from a R/C radio, Analog
Joystick, wireless modem, or microcomputer into high voltage and high current
output for driving one or two DC motors. Designed for maximal ease-of-installation,
it is delivered with all necessary cables and hardware and is ready to use
in minutes.
The Single
Channel controllers are identical to the Dual Channel except that the output
transistors of both channels are perfectly synchronized and thus allow the
motor output leads to be wired in parallel and thus drive twice the amps
into a single load.
The AX3500 version is equipped with quadrature optical encoders inputs for
precision speed or position operation. Numerous safety features are incorporated
into the controller to ensure reliable and safe operation.
Power Stage |
Operating
Voltage |
|
| Number
of Channels |
1 |
| Max
Current:
30s
1min
3min
1hr+ |
120A
100A
80A
80A |
| Surge
Current |
>500A |
| MOSFETs
per Channel |
2
x 8 |
ON
Resistance |
2.5
mOhm |
Synchronous
Rectification |
Yes
- allows regenerative braking |
Current
Limiting |
By
automatic power output reduction according to user preset limit
and temperature |
Temperature
Protection |
Automated
current limit reduction starting at 175F (80C) case temperature |
Voltage
Protection |
Output
shut off below 12V and above 43V |
Power
Wiring |
0.25
in. Faston Tabs used in pairs |
Command |
R/C Inputs |
Two
inuts (1.0ms - 1.5ms center - 2ms, Adjustable) |
Serial Interface |
RS232, 9600 bauds |
Analog Interface |
Two inputs (0V - 2.5V center - 5V) |
Input Corrections |
Ch1 and Ch2 mixing for tank steering. Programmable deadband.
Four exponent and Logarithmic command curves |
Input/Outputs |
Optical
Encoder Inputs |
Four
inputs for two incremental encoders. 125kHz max |
R/C
Outputs |
Eight
pulsed outputs for driving R/C servos |
Analog Inputs |
Two inputs, 8-bit resolution |
Digital Outputs |
One output, 24V 2A max |
Digital Inputs |
Two
general purpose inputs |
5V Supply Output |
100mA max for radio or other devices |
Operating Modes |
Open Loop Speed |
Forward and Reverse speed control, seperate or mixed |
Closed Loop Speed |
Use tachometer on analog inputs and PID |
Position Mode |
Use potentiometer on analog inputs and PID |
Controller Configuration |
Jumper-less
using PC utility |
Physical |
Operating Temperature |
-40 to +85C case temperature |
Enclosure |
Unenclosed,
board level |
Cooling |
Heatsink |
Controller Size |
4.2
x 6.75 x 1.2 in. |
Cables |
10 in. RC rable to radio. 4 in. RS232 cable for PC connection |
Weight |
7.5oz. |
