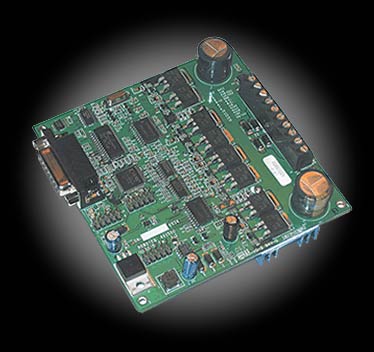

RoboteqŐs AX1500 controller is designed to convert commands received from a R/C
radio, Analog Joystick, wireless modem, or microcomputer into high voltage
and high current output for driving one or two DC motors. Designed for maximal
ease-of-installation, it is delivered with all necessary cables and hardware
and is ready to use in minutes.
The Single
Channel controllers are identical to the Dual Channel except that the output
transistors of both channels are perfectly synchronized and thus allow the
motor output leads to be wired in parallel and thus drive twice the amps
into a single load.
Power Stage |
Operating
Voltage |
|
| Number
of Channels |
1 |
| Max
Current:
30s
1min
3min
1hr+ |
60A
50A
40A
40A |
| Surge
Current |
>250A |
| MOSFETs
per Channel |
2
x 4 |
ON
Resistance |
5
mOhm |
Synchronous
Rectification |
Yes
- allows regenerative braking |
Current
Limiting |
By
automatic power output reduction according to user preset limit
and temperature |
Temperature
Protection |
Automated
current limit reduction starting at 175F (80C) case temperature |
Voltage
Protection |
Output
shut off below 12V and above 43V |
Power
Wiring |
Terminal
strip used in pairs. 2 x 12g max cable |
Command |
R/C Inputs |
Two
inuts (1.0ms - 1.5ms center - 2ms, Adjustable) |
Serial Interface |
RS232, 9600 bauds |
Analog Interface |
Two inputs (0V - 2.5V center - 5V) |
Input Corrections |
Ch1 and Ch2 mixing for tank steering. Programmable deadband.
Four exponent and Logarithmic command curves |
Input/Outputs |
Analog Inputs |
Four
inputs, 8-bit resolution |
Digital Outputs |
One
output, 24V 1A max |
Digital Inputs |
Up
to three general purpose inputs |
5V Supply Output |
100mA max for radio or other devices |
Operating Modes |
Open Loop Speed |
Forward and Reverse speed control, seperate or mixed |
Closed Loop Speed |
Use tachometer on analog inputs and PID |
Position Mode |
Use potentiometer on analog inputs and PID |
Controller Configuration |
Jumper-less
using PC utility |
Physical |
Operating Temperature |
-40 to +85C case temperature |
Enclosure |
Unenclosed,
board level |
Controller Size |
4.2
x 4.2 x 1.5 in., including heatsink |
Cables |
10 in. RC rable to radio. 4 in. RS232 cable for PC connection |
Weight |
3oz. |
