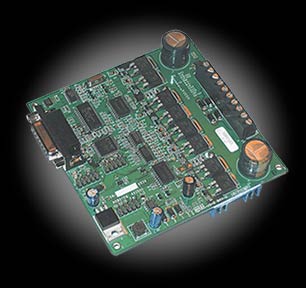

Roboteq's AX1500 controller is designed to convert commands received from a R/C radio, Analog Joystick, wireless modem, or microcomputer into high voltage and high current output for driving one or two DC motors. Designed for maximal ease-of-installation, it is delivered with all necessary cables and hardware and is ready to use in minutes.

The controller's two channels can either be operated independently or mixed to set the direction and rotation of a vehicle by coordinating the motion on each side of the vehicle. The motors may be operated in open or closed loop speed mode. Using low-cost position sensors, they may also be set to operate as heavy-duty position servos.

The controller can be reprogrammed in the field with the latest features by downloading new operating software from Roboteq.

Operating Voltage	12V to 40V DC
Number of Channels	2
Current	20A Continuous, 30A Max, 150A Surge
Current Limiting	By automatic power output reduction according to user preset limit and temperature
Temperature protection	Automated current limit reduction starting at 80o C (175o F) heat sink temperature
Voltage protection	Output shut off below 12V and above 43V
Power Wiring	Terminal strip. AWG 12 max cable
R/C inputs	2 inputs(1.0ms - 1.5ms center - 2ms, Adjustable)
Serial Interface	RS232. 9600 bauds
Analog Interface	2 inputs (0V - 2.5V center - 5V)
Input Corrections	Ch1 & Ch2 mixing for tank steering. Programmable deadband. 4 Exponent & Logarithmic command curves.
Digital Outputs	1 output, 24V 1A max
5V Supply Output	100mA max for Radio or other devices
Open Loop Speed	Forward & Reverse Speed Control. Separate or Mixed
Closed Loop Speed	Use Tachometer on analog inputs & PID
Position Mode	Use Potentiometer on analog inputs & PID
Operating Temperature	-40 to +85oC heat sink temperature
Cooling Method	Heatsink
Dimensions	4.2" (106mm) wide x 4.2" (106mm) long x 1.5" tall (38mm) tall including heat sink
Weight	3 oz (85g)
