Electronics
        Battery Eliminators and Regulators


Click photo to enlarge, double-click to shrink.

$57.00
QTY
Stock Status: Limited Quantities


Instruction Manual:

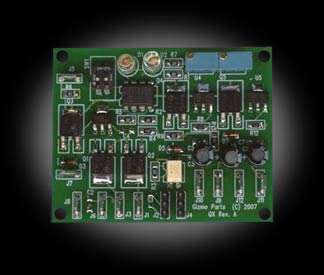

QX Battery Eliminator/Dual Switch Controller/Dual Power Supplies
Part# RSG-RSQX

The RSGQX is a high current switch controller, receiver battery eliminator compatible with most R/C receivers, and a dual variable voltage power supply.

Opto-isolated R/C channel input
Built in hysteresis measurement insures no false triggers
Automatic detection of R/C signal loss
Dual independently controlled outputs (either normally opened or closed)
Each output is rated 60V (3A)
5V (800mA) output for accessories
Battery supply 8-36V
Dual adjustable supplies from 1.5-14V up to 800mA
