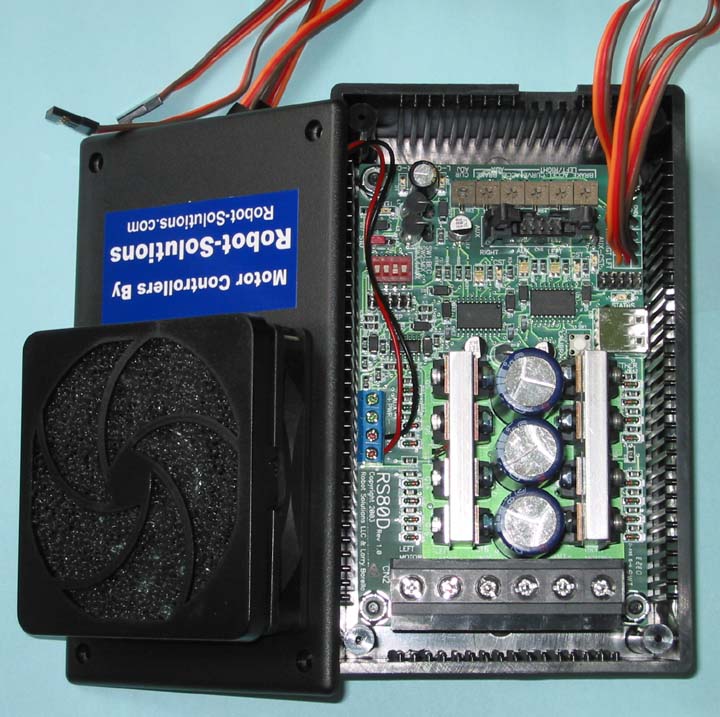

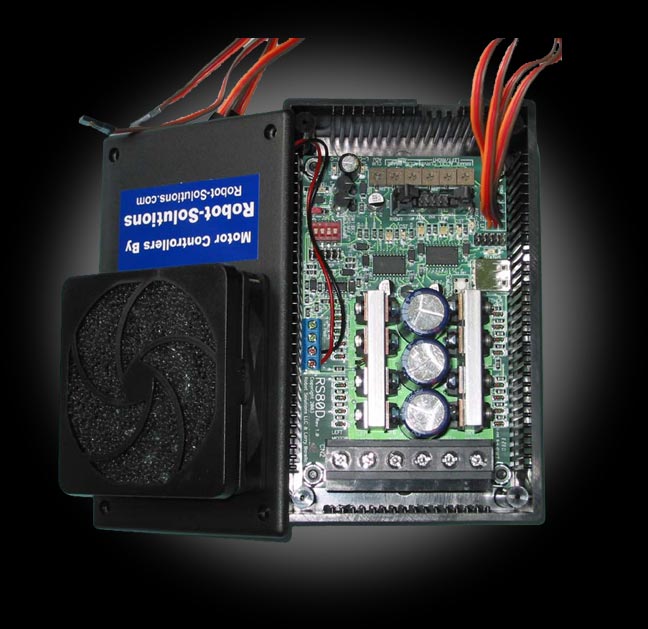

The
RS80D is a 2-1/2 channel 80 Amp motor controller based on
proven MC1 and uMOB2 technology. This single controller will allow
you to control TWO drive motors AND one AUX output.
Specifications
:
Board size 5.18"x3.2"x1.62".

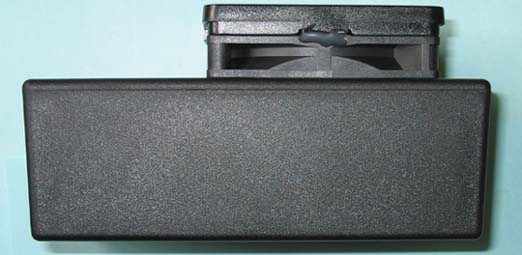

Enclosure size 6.20"x3.78"x2.18" 3.2" high in
fan area.
Weight with enclosure 1.5 Lb.
Two channels 80 Amps each.
4-42v Battery operation.

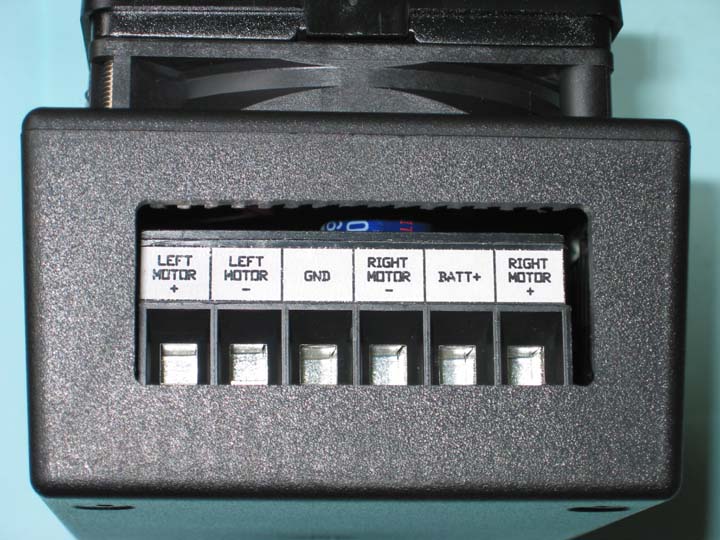

Large power connector accepts up to 4awg wires.
One OSMC style Aux output connector for MC1 or OSMC weapon control.
User adjustable current limiting.
Thermal power monitoring/protection adjusts output power as board gets
hot.
Four RC inputs.
R/C Left (throttle).
R/C Right (steering).
R/C Aux (PWM, Spin or Relay control).
R/C Flip (corrects drive when robot is inverted).
Selectable channel mixing for single stick operation.
BEC provides power to radio receiver.
Adjustable Brake, Accel and Exponential curve.
Calibration mode for compatibility with all RC systems including IFI.
Indicator LED's show direction,power,overtemp. and board status.
Tether connector (requires special adapter) Not currently available.
|
