$39.95
QTY
Stock Status: In Stock


Data Sheet:


Pinout Diagram:


Note: The inversion feature of the IMX-1 requires the use of speed controllers which can be calibrated such as the IFI Victor and Thor speed controllers. Unfortunately Vantec speed controllers cannot be calibrated and thus do not work with our invert feature. You can still use the mixer, just not the invert channel.

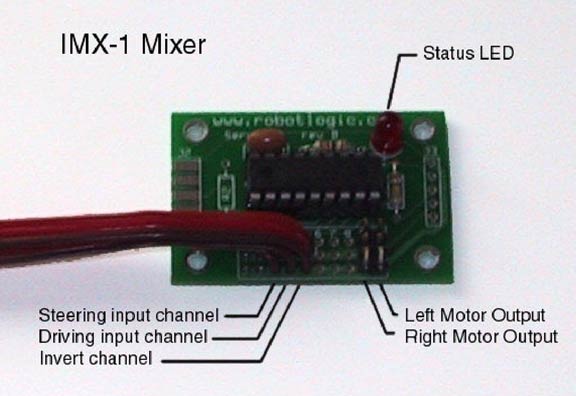

IMX-1 Invertable RC Tank Mixer
Part# RL-IMX1

This RC mixer from RobotLogic is specifically designed to allow driving a tank steering robot with a single control stick. An invert feature controlled by an RC channel allows driving the robot inverted. Even non-invertable robots can benefit from the invert feature because inverted controls will allow the robot to be easily driven backwards, leading with the rear.

Selectable pass-through mode allows using a tank mixer built in to a speed controller, such an a Vantec, but still retaining the invert feature.

IMX-1 features include:
* Use a third RC channel to invert your forward-backward Y channel
* Failsafe on signal loss
* Tank mixing algorithm designed to give improved robot control over standard Elevon mixing
* Selectable tank mixing or pass-through behavior
* No need for line boosters when used with IFI speed controllers
* An LED provides feedback for proper operation
* Length: 1.9" Width: 1.25" Height: slightly taller than a servo connector
* Remote LED option allows you to mount the LED to the outside of your bot.

"Just wanted to share my happiness over how your mixer performed =) I'm planning on using them in all my bots from now on. "
- Greg Dabkowski (Mad Cows Revenge)

"I can say that withoud a doubt, one of the biggest reasons for my wins is because of you product! GREAT JOB! "
- "Overlord" on the forum

"Just want to give props to the Robot Logic guys. I installed the mixer in Psychotron this weekend and it works great. Great solution to a common problem. No more practicing driving upside down. I also like the failsafe feature."
-Kelly Smith Team Rockitz, Middleweight: Psychotron
