ML-TML-PT

Pan/Tilt CCD Mechanism

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The

pan/tilt is actuated by hobby servos via chain drive. The servos

are controllable with the standard PWM signal from hobby radios and

many micro controllers such as the Basic Stamp. The pan/tilt allows

for a great range of view as well as the ability to glance at the

frontal extremes of the robot while you are driving.&nbsp;</font></p>

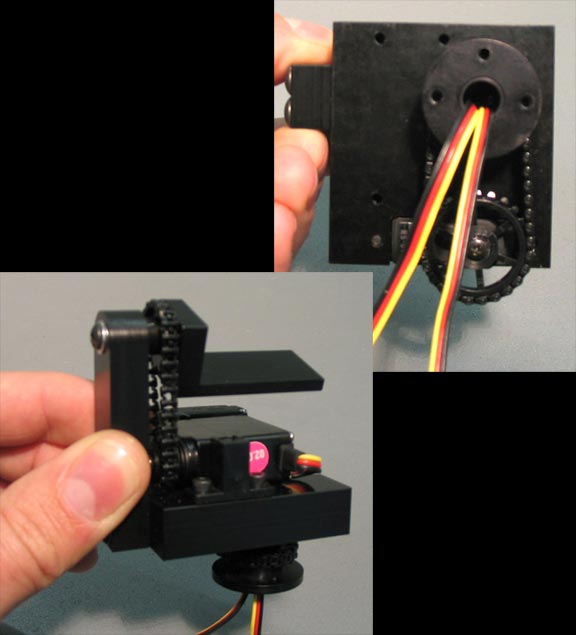

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">One of the unique features of these pan/tilt units is that the servo

leads are routed down through the center of the pan shaft of the unit

into the chassis of the robot platform. This keeps the wiring clean

and keeps the leads from limiting the range of motion of the mechanism.</font></p>

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The

pan/tilt unit has 140 degrees of pan range and 70 degrees of tilt

range with wireless camera. Tilt range can be increased&nbsp; with

different cameras</font></p>
