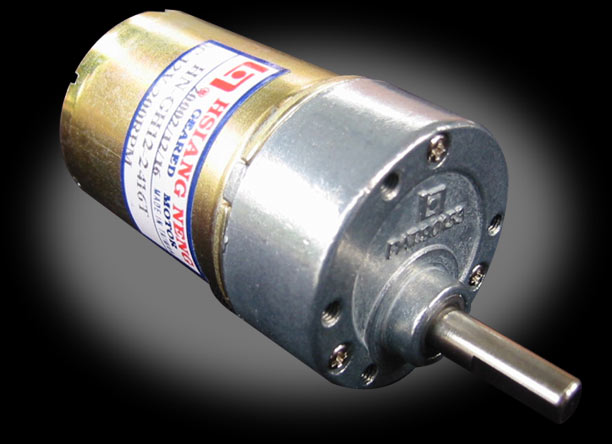

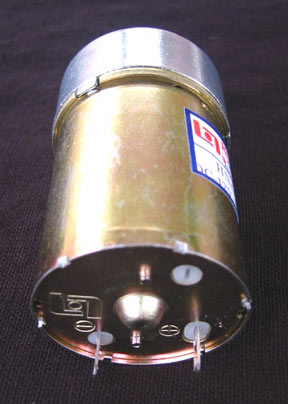

This
is a compact, small and powerful gearhead motor, great for drive
power for smaller bots. This is the motor that powers the MMP
units from The Machine Lab.
· 12V
Permanent Magnet
· All metal gears
· 78% efficiency
| |
ML-50
|
12V |
| No
load speed |
120
rpm |
| Amps
@ nominal |
730mA |
| No
load current |
115
mA |
| Stall
current |
3.3A |
| Stall
torque |
320
oz-in |
| Nominal
Voltage |
12V
(can be run higher) |
| Max
Efficiency |
83
oz-in / 100 rpm |
| Gear
ratio |
50:1 |
| Weight |
7.26
oz / 0.454 pound
|
| Diameter |
1.46" /
37mm
|
| Length |
2.24" |
| Shaft
diameter |
6
mm - with flat
|
| Shaft
length |
18
mm
|
Dimensions
