ML-3506 ML-3506 Planetary Gearmotor <table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Nominal
Voltage</font></div></td>
<td><div align="left">
<p><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">12V</font>
</div></td>
</tr>
<tr>
<td> <div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear
Type</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Planetary</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Information</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">8mm
with flat, dual ball bearing supported</font></div></td>
</tr>

<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor
Diameter</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">1.4
in. (36mm)</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Gearhead
Dimensions</font></div></td>
<td> <div align="left"> <font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">1.9
in. square (48.25mm)</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">No
Load Speed</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">350
RPM</font></div></td>
</tr>

<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">No
Load Current</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">0.5A</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Current</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">12A</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Rated
Torque</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">98
oz.-in. (7057 g-cm)</font></div></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">700 oz.-in. (50,405 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length (minus shaft)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.9 in. (98mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8mm.</font></td>
</tr>
<tr> <tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.75 in. (19mm)</font></td>
</tr>
<tr>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></div></td>
<td><div align="left"><font color="#00ff66" size="2" face="Arial, Helvetica, sans-serif">15.8
oz. (448g)</font></div></td>
</tr>
</tbody>
</table>

ML-3506 Planetary Gearmotor
A perfect geared motor to drive your 15-40 pound robot! This workhorse is built to last.

$69.95
Robot MarketPlace - ML-3506 Planetary Gearmotor

Motors
    Motors - Geared

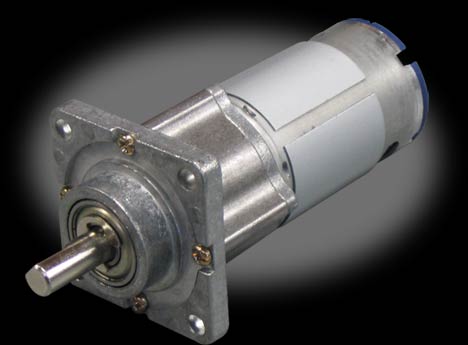

Click photo to enlarge.

ML-3506 Planetary Gearmotor
Part# ML-3506



(average customer rating)

$69.95
This Product Has Been Discontinued
Stock Status: Removed
