These
workhorse motors are a great, compact design with easy
face and back plate mounting possibilities. Available in several
different sizes.
These
are the same motors that have powered 220 pound, Heavyweight robots
such as Voltronic to victory!
Features:
- Reversible, Permanent Magnet design
- Operates at either 12V or 24V.
- Linear speed/torque characteristics for extremely smooth operation
at various voltages
- Ball bearings
- Long-life brushes that can be replaced without disassembly of motor
- Built to last- these are rated for continuous duty! In a robot, you'll
be able to run these long and hard, with little chance of damage.
- Extremely efficient motor (about 82.9% efficiency at 24V)
- Conduit box (not pictured) is easily removed with
two screws, for space & weight savings.
| Voltage |
12 |
24 |
| rpm |
2133 |
4300 |
| peak hp |
.467 |
1.9 |
| stall
torque |
884
oz-in |
1782
oz-in |
| no load
current |
1.7A |
1.7A |
| stall
current |
120A |
240A |
| weight |
8.0
lb |
| shaft |
1/2" keyed |

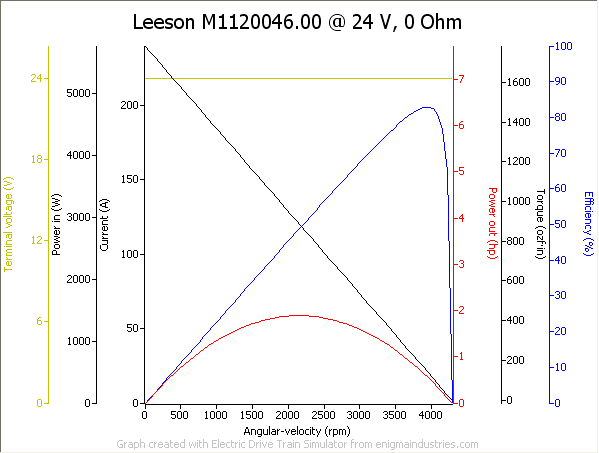

Performance Chart
Sizing Diagram
