Robot MarketPlace - IFI VEX Pro Victor 885

IFI-V885

IFI VEX Pro Victor 885

The

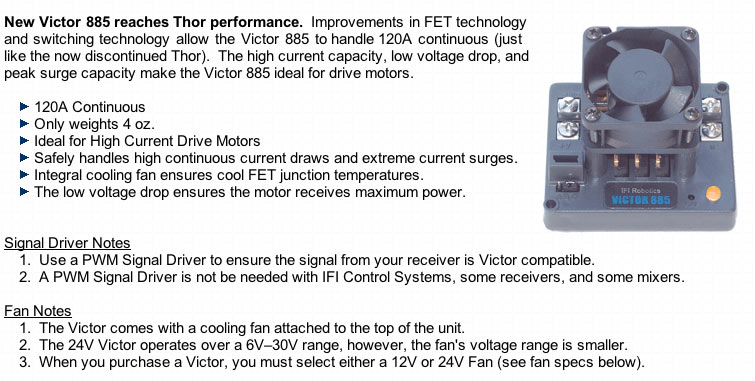

Victor 885 replaces the Thor 883.  Improvements in FET technology

and switching technology allow the Victor 885 to handle 120A continuous.

The high current capacity, low voltage drop, and peak surge capacity

make the Victor 885 ideal for drive motors.

This

unit is compatible with standard R/C equipment using the <a href="IFIW-SIG36.html" target="_top">PWM

Signal Driver</a>.

<tr>

<td>Control Signal

Standard

</td>

<td>R/C Type PWM

(Pulse Width Modulation) single-channel</td>

</tr>

<tr>

<td>12V Fan Operating

Voltage </td>

</tr>

<tr>

<td>24V Fan Operating

Voltage </td>

<td>16V to 30V

</td>

</tr>

<tr>

<td>Maximum Current

</td>

<td>120A continuous

</td>

</tr>

<tr>

<td>Surge Current

</td>

<td>200A for <

2 second

300A for < 1 second</td>

</tr>

<tr>

<td>Power Connector

Type

</td>

<td>6-32 Screw Terminals (Maximum Screw Torque - 5 in*lbs) </td>

</tr>

<tr>

<td>Signal Connector

Type

</td>

<td>Use a standard

non-shrouded PWM cable (3 wires) </td>

</tr>

<tr>

<td>Typical Application

</td>

<td>Power one motor

with variable speed forward, reverse, or off </td>

</tr>

<tr>

<td>Weight </td>

<td>0.25 lbs (4

oz)</td>

</tr>

</table>

Please note that the Victor controllers do not include a BEC. Receivers will need a different power source.

IFI VEX Pro Victor 885

The Victor 885's high current capacity, low voltage drop, and peak surge capacity make the Victor 885 ideal for higher current drive motors.

$
189.95

Electronics
IFI Robotics Speed Controllers

Click photo to enlarge.

IFI VEX Pro Victor 885
Part# IFI-V885

(average customer rating)

Was: $199.00

Our Price:

$189.95

Need more than 1? Add it to your cart and adjust the quantities there. Be sure to update your cable quantities too!

Stock Status: In Stock

The Victor 885 replaces the Thor 883. Improvements in FET technology and switching technology allow the Victor 885 to handle 120A continuous. The high current capacity, low voltage drop, and peak surge capacity make the Victor 885 ideal for drive motors.

This unit is compatible with standard R/C equipment using the PWM Signal Driver.

Control Signal Standard	R/C Type PWM (Pulse Width Modulation) single-channel
12V Fan Operating Voltage	6V to 16V
24V Fan Operating Voltage	16V to 30V
Maximum Current	120A continuous
Surge Current	200A for < 2 second 300A for < 1 second
Power Connector Type	6-32 Screw Terminals (Maximum Screw Torque - 5 in*lbs)
Signal Connector Type	Use a standard non-shrouded PWM cable (3 wires)
Typical Application	Power one motor with variable speed forward, reverse, or off
Weight	0.25 lbs (4 oz)

Please note that the Victor controllers do not include a BEC. Receivers will need a different power source.

Installation Guide

Data Sheet

Manual

Click here to add your own review or comment for this product.

11/1/2010

acadburn

Was running a NPC-T74 motor at 24 V This motor controller was totally abused and it kept running!

The size is tiny!
The price is cheep for what it dose compared to others

This plus the Victor 883 I was running is going to make me an IFI fan for LIFE

6/24/2010

Alex Marler

Great performance for a small controller

I bought this controller for my crusher robot, to control a Dewalt motor.

The current stats are amazing and yes it can handle what I want it to which is great.

I only gave 4 stars because I found the calibration system hard to get right, might just be me not sure anyway when it was sorted 10/10!!!!

6/18/2009

jimfixit

Easily handled the current my Vantec couldn't.

5/16/2009

Team OverKill

High current in a small package

These controllers need some tuning up for combat bots, but have the best current handling for their size & weight. As long as you don't short the exposed FET tabs, they are very reliable.

5/14/2009

Matt Tavares (Blender)

Almost perfect

These things are amazing. As long as your fan keeps spinning, these will keep pumping the current to your motors. The only down side is that you need the signal drivers for non-ifi pwm sources.
