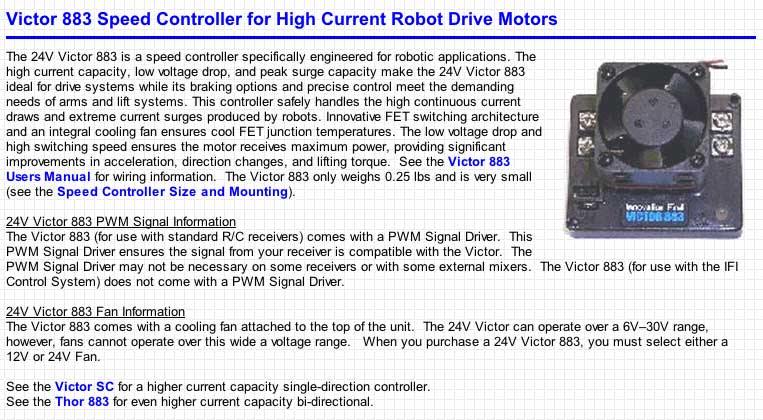

IFI-V883 IFI Victor 883 <p align="left"><font face="Arial, Helvetica, sans-serif" size="2"> <font color="00ff66">The
Victor 883 is a 60A speed controller specifically engineered for robotic
applications. It is currently our most popular-selling speed controller!
Many builders choose the Victor for it's small size and weight, combined
with it's awesome battle-tested reputation.</font></font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
unit is compatible with standard R/C equipment using the <a href="IFIW-SIG36.html" target="_top">PWM
Signal Driver</a>.</font></p>
<table width="80%" border="1" align="center" cellpadding="1" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Signal
<br>
Standard <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">R/C Type PWM
(Pulse Width Modulation) single-channel </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V Fan Operating
Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V to 16V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V Fan Operating
Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V to 30V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Current
<br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">60A continuous
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Surge Current
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100A for &lt;
2 second <br>
200A for &lt; 1 second</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Connector
Type <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-32 Screw Terminals
</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Signal Connector
Type <br>
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use a standard
non-shrouded PWM cable (3 wires) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Typical Application
</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power one motor
with variable speed forward, reverse, or off </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.25 lbs (4 oz)</font></td>
</tr>
</table>
