IFI-SC883

IFI VEX Pro Victor SC

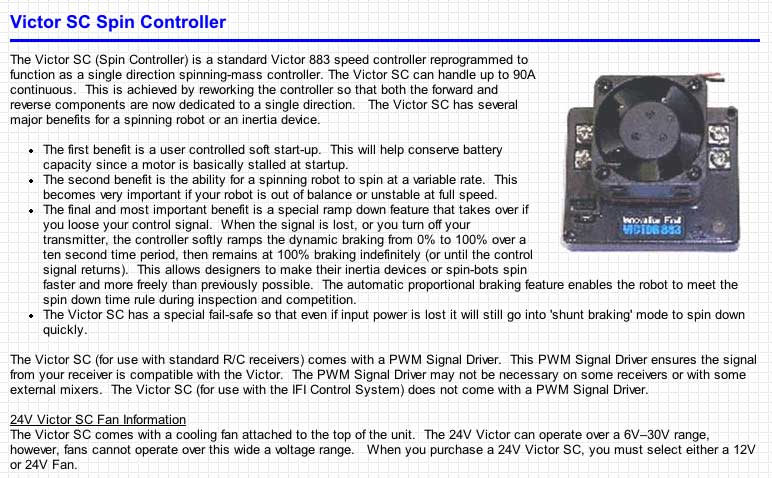

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The

Victor 883 SC is a 90A spin controller specifically designed for spin-bots

and inertia devices. It is meant to not be reversible, only proportional

forward and off.</font></p>

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This

unit is compatible with standard R/C equipment using the <a href="IFIW-SIG36.html" target="_top">PWM

Signal Driver</a>.</font></p>

<table width="80%" border="1" align="center" cellpadding="1" cellspacing="0" bordercolor="#666666">

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Control Signal

<br>

Standard <br>

</font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">R/C Type PWM

(Pulse Width Modulation) single-channel</font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V Fan Operating

Voltage </font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V to 16V </font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">24V Fan Operating

Voltage </font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12V to 30V </font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Current

<br>

</font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">90A continuous

</font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Surge Current

</font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100A for &lt;

2 second <br>

200A for &lt; 1 second</font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Connector

Type <br>

</font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-32 Screw Terminals (Maximum Screw Torque - 5 in*lbs)</td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Signal Connector

Type <br>

</font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Use a standard

non-shrouded PWM cable (3 wires) </font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Typical Application

</font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power one motor

with variable speed forward or off</font></td>

</tr>

<tr>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight </font></td>

<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.25 lbs (4 oz)</font></td>

</tr>

</table>

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Please note that the Victor controllers do not include a BEC. Receivers will need a different power source. </font></p>
