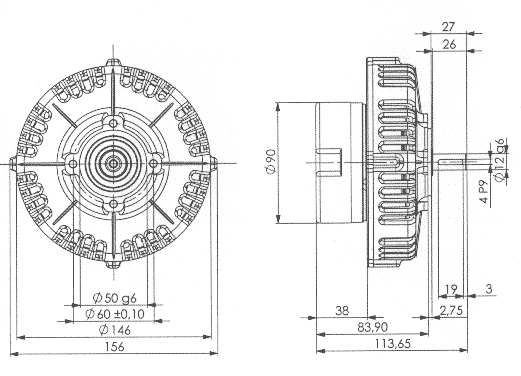

Dimensions:
More Specifications:
|
|
|

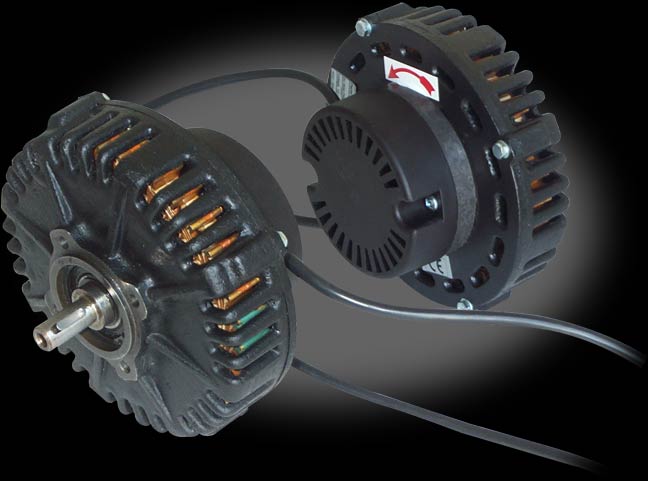

PMG 080 Perm Motor
Part# EMS-PMG080
WOW-
That's all we can say about this one. Almost 4 horsepower from a
7.5 pound motor!
The
PMG 080 is a "pancake" style
neutrally timed, brushed permanent magnet DC motor manufactured by
Perm-Motor in Germany.
Its
high efficiency and high power make it a good choice for electrathon
vehicles, generators, go-karts and robots.
Specifications:
Voltage:
12/24VDC
Weight: 7.5 lb
Size: 5.9" diameter, 3.5" long
Shaft: 12mm diameter x
27mm long
Shaft has threaded hole, M6 x 12, 16.2 mm deep
Mounting holes are
M6 x 15, 13.8 mm deep
Wires: two 8 gauge, about 1.5 feet long each
Angular-velocity constant: 291 rpm/V
Torque Constant: 4.67 ozf-in/A
No-Load current: 7.8 A
Rotor Inertia: 115 oz-in²
Inductance: 2.6 µH
Continuous current: 78 A
10 min current: 115 A
| |
12
V |
24V |
| Peak
efficiency |
76.7%
| 83.2% |
| Peak
Power |
0.958
hp |
3.95
hp |
| No-load
angular velocity |
3390
r/min |
6880
r/min |
| Stall
current |
253
A |
505
A |
| Stall
torque |
1140
ozf-in |
2320
ozf-in |
|
| |
|
|
