We start with the powerful DeWalt 24V Hammerdrill motor and it's well-engineered transmission, then modify and rebuild it for robotic combat.

Specifications:

3 Pounds, 6 oz.

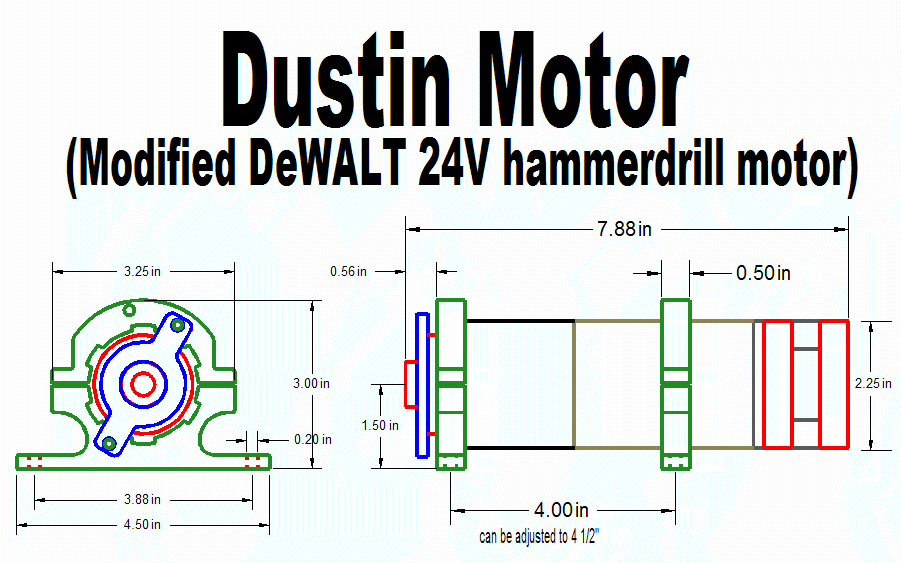

7.88" L x 4.5" W x 3.00" H (with mounts)
Can be run at 24 or 36V
Reversible, Neutral Timed
No shaft is included, the 5/8" shaft is sold separately

Note when ordering your 5/8" shaft, the first 1.25" of the shaft will be inside the front of this motor, so you might want to order a slightly longer shaft than usual.

	24 Volt, High Torque	36 Volt, High Torque
Gear Ratio	50.4 : 1	50.4 : 1
No load RPM	450 RPM	675 RPM
Stall Current	120 Amps	180 Amps
Stall Torque	550 in-lb	825 in-lb
Horsepower	.98 HP	2.21 HP

Manual  3D DWG File  Hi Res 3D File  2D DXF File  Dimensions

Click here to add your own review or comment for this product.
5/8/2009 steve	Dustin motor We were very pleased with the ease of install and high torque that we got from the motor. Just be sure to check the screw tension when you go to final assy.
