These are custom-designed for the 3" Magmotors, but will also fit other motors with a 3" diameter housing. These will fit both the S28-150 or the S28-400 Magmotor.

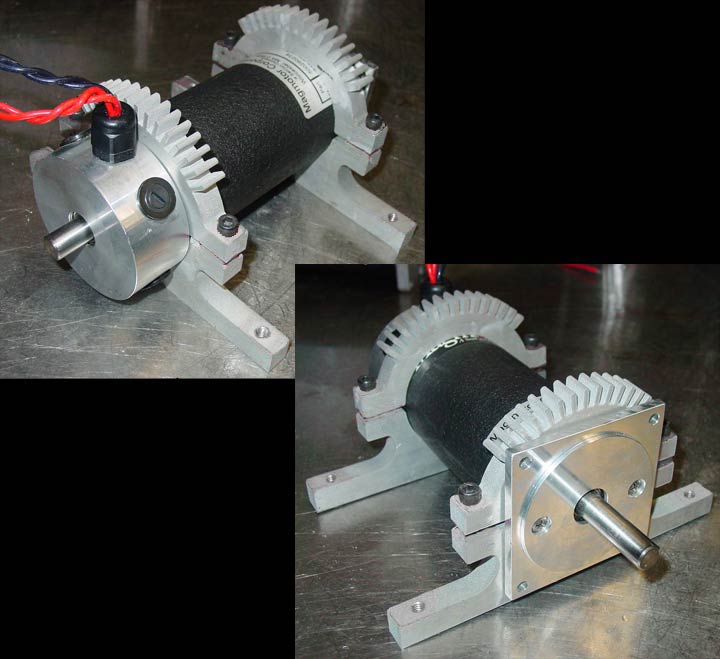

Available with and without the heat-sink fins. The addition of the cooling fins helps disburse the heat that this motor can produce, allowing your motor to run more efficiently.

Choose from 1/2" or 3/4" thick 6061-T6 aluminum (1/2" thickness shown in these photos). All mounts come with two holes in the base for 1/4" screws, and two bolts are included to attach the top half of the mount around your motor- couldn't be more simple to install.

There are no other mounts made for this motor that are specifically-designed for fast swap-out. Nothing worse that having to break down your entire robot just to get a motor out, especially during a frantic competition. With these mounts, 2 bolts from the top of each mount, and you can lift the motor right out.

Weight: 8.29oz

Mounts are sold individually, you may want to use two per motor.

Click photo for large view

S28-150 Magmotor

S28-400 Magmotor
