BP639521-00

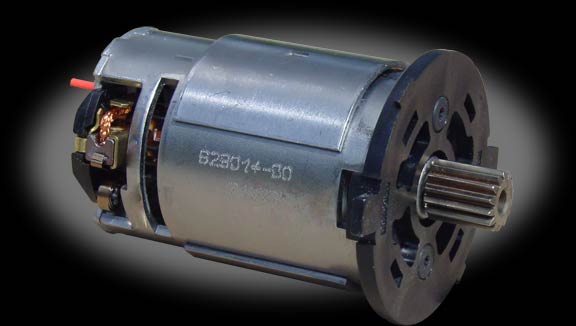

DeWalt 36V Hammerdrill Motor

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Approximately 1hp max output @ 36VDC<br>

15600 RPM @ 36V<br>

Voltage Constant = 520 rpm/V (forward)(475 rpm/V (reverse))<br>

Torque Constant = 2.6 oz-in/amp<br>

Stall current: 300 amps<br>

Length: 3.125 inches<br>

Diameter: 2.0 inches<br>

Pinion gear: 14 tooth, 13mm diameter<br>

Weight: 1.78 lb<br />

Shaft: 5 mm, with non-standard-pitch 14 tooth pinion<br />

Size: 50 mm diameter, ~84 mm long without shaft<br />

Mounting: 4x M4 on 33 mm bolt circle

</font></p>
