Key Features
Sportwerks 2-channel AM pistol-grip radio system
Dynamite Tazer 15T ESC with forward and reverse
Sportwerks 19T modified racing motor
Multi-rib front and medium pin rear tires
Prepainted, decaled, trimmed and mounted body
White dish racing wheels
Aluminum oil-filled coil-over shocks with threaded
Molded composite rigid chassis design
3-gear transmission with adjustable slipper clutch
Complete ball bearing set
Molded front bumpers and rear engine guard
Adjustable steel turnbuckles
Bell-crank steering and adjustable servo saver
Overview

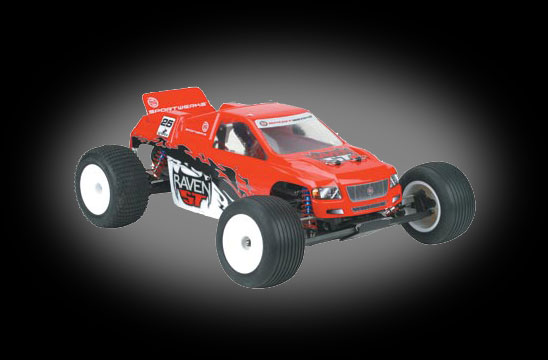

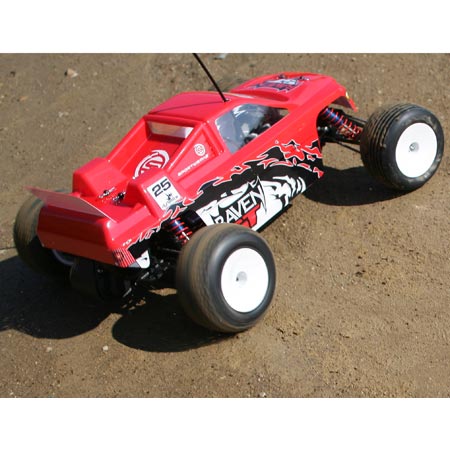

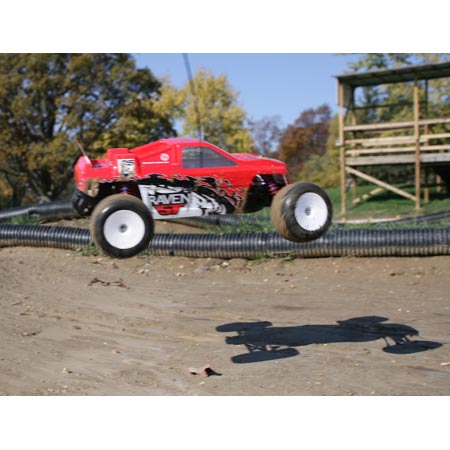

The new Sportwerks™ Raven ST is the perfect truck for new RC enthusiasts. The completely ready-to-run package includes everything you need to get started bashing around the backyard or the track, and it’s at a price that’s perfect for just starting out. The Raven™ ST doesn’t skimp on the race-inspired features though, including a new Dynamite® Tazer™ 15T electronic speed control, Sportwerks 19-turn modified motor, Sportwerks 2-channel AM pistol-grip radio system, aluminum shocks with threaded bodies, complete ball bearings and much more.
| Type |
2WD Stadium Truck |
| Scale |
1/10 |
| Length |
16 in (406mm) |
| Wheelbase |
Front Track: 12.75 in (324mm) Rear Track: 12.5 in (318mm) |
| Chassis |
Molded Composite |
| Suspension |
Independent |
| Drive Train |
3 gears with slipper clutch |
| Tire Type |
Multi rib front/mini pin rear |
| Motor or Engine |
Sportwerks 19T rebuildable |
| Speed Control |
Dynamite Tazer 15T |
| Radio |
Sportwerks 2-channel AM |
| Wheel Size |
2.2 in |
| Kit/RTR |
RTR |
| Shock Type |
Aluminum coil-over, oil-filled |
| Body |
Factory-painted with decals applied |
| Ball Bearings |
Complete |
Needed to Complete
| 8 "AA" Alkaline batteries for the transmitter |
| Charger for 7.2v battery pack (DYN4036 or equivalent) |
|
