Key
Features
• Unlike most planes for entry-level pilots, the
HobbyZone Super Cub has realistic scale features that are appealing to those pilots
who want a teach-yourself-to-fly product that looks like a real airplane
• A powerful 480 motor that offers great climb rate and power, and is more powerful
than most motors on other teach-yourself-to-fly planes
• Two chargers are included
to give pilots two options for charging their Ni-MH battery packs - a 3-hr AC
delta peak wall charger and a 1.2A variable rate DC peak charger
• X-Port technology that allows pilots to use add-on accessories, such as the Aerial
Drop Module
• Steerable tail wheel - allows pilots to more easily make turns while navigating
on the ground, and makes takeoffs and landings more controlled
• Two flight modes - ACT can be left on or turned off to allow pilots to be able
to learn with ACT and then fly without it, once experienced, to do more advanced
aeroabatic flying
• Steel wire pushrods provide more precise manipulation of the control surfaces
for added responsiveness and a more durable control component
• Durable Z-Foam construction - an extremely durable foam that is lighter and stiffer
than most foams, and allows the plane to fly truer and straighter out of the box.
It is easily repairable with CA, and is the same material that is used in the
F-27B Stryker and Typhoon 3D from ParkZone
• Detailed instruction manual and video CD educate pilots who are new to RC about
flying, repairs, batteries, chargers, and replacement parts
• All HobbyZone planes are supported with a full set of replacement and accessory
parts
• One-box purchase, so everything that's needed to get into the air is included,
even AA batteries for the transmitter
• A ready-to-fly design that allows users to get in the air quickly after simply
attaching the wing, tail and landing gear, and installing the rechargeable 7-cell
8.4V 1000mAh Ni-MH battery pack
• An easy-to-install, one-piece wing that provides incredible handling in the wind
and smooth flight, and a conventional tail design
• A 3-channel radio system that makes it easier for pilots who are new to RC to
teach themselves how to fly with a 3-channel airplane, thanks to ACT. Additionally,
the third channel allows for pitch control so that pilots can make tighter turns
and have a wider range of maneuvers, as well as the option to make pitch trim
adjustments while the plane is in the air
Overview

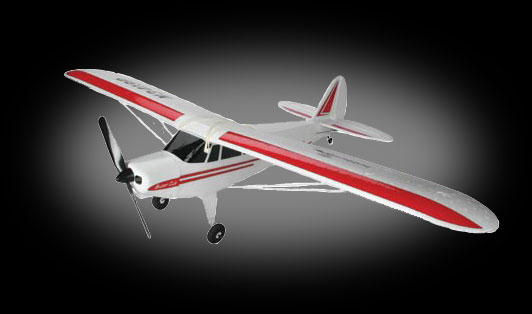

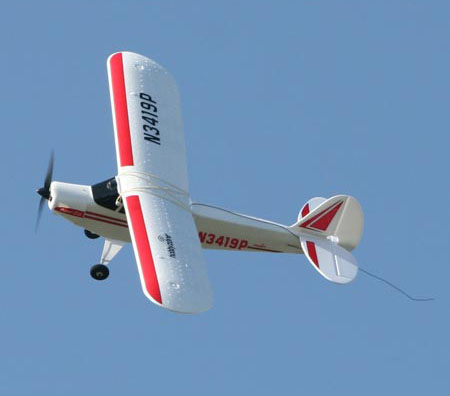

Anybody can have a good time flying the new Super
Cub RTF. It comes right out of the box with everything you need included...even
batteries for the transmitter. The Super Cub is equipped with 3-channel control
that helps provide a true-scale flying experience. Throttle, steering and pitch
controls allow you to learn the basics of RC flight, safely and simply, while
still having a great time flying. Meanwhile, the instantly recognizable scale
Cub design makes you feel as though you're flying a full-size pleasure plane.
In addition, the Super Cub comes with all of the features you expect from HobbyZone,
including X-Port expandability. Its durable Z-foam construction makes the Super
Cub incredibly strong and easy to repair, and its unique trim scheme makes it
look great in the sky and in your hands.
HobbyZone’s Innovative Anti-Crash Technology
The latest breakthrough in RC flight, Anti-Crash
Technology™ (ACT) makes teaching yourself to fly easier and safer than
ever before. With ACT, anyone can fly.
Here’s how it works:
Two sensors on the Super Cub.,one on the top
and one on the bottom of the fuselage, monitor the position of the plane in
relation to the ground. When the plane is flying level, the top sensor sees
the sky, while the bottom sees the ground, and they tell the onboard computer
that the plane is flying correctly. If the plane enters a dive and the sensors
detect that the plane’s orientation is incorrect, the system will automatically
correct the control inputs and help prevent the plane from crashing, allowing
you time to regain control. ACT lets you fly without worry. And once you’ve
gained experience with your Super Cub, you can turn ACT off for more complete
control and increased maneuverability.
| Wing
Span |
47.75
in (1200mm) |
| Overall
Length |
32.5
inches (825mm) |
| Flying
Weight |
26
ounces (715 g) |
| Motor
Size |
480
Power |
| Radio |
3 channel
proportional FM |
| Trim
Scheme Colors |
white,
red, and black |
| Prop
Size |
10
x 8 |
| Speed
Control |
Power
FET proportional ESC/receiver |
| Recommended
Battery |
8.4V
1000mAh Ni-MH (stock) |
| Elevator |
Proportional |
| Rudder |
Proportional |
| Throttle |
Proportional |
| Approx.
Flying Duration |
10-15
minutes |
| Gear
Ratio |
3:1 |
| Transmitter
Range |
2500
ft. |
| Available
Frequencies |
6 channels
on 27MHz |
| X-Port |
yes |
| Anti-Crash
Technology |
yes |
| Charger |
Variable
rate 1.2A DC peak with LED and 3-hr AC Delta Peak with LED |
| Landing
Gear |
Front
landing gear (foam wheels) and steerable tail wheel |

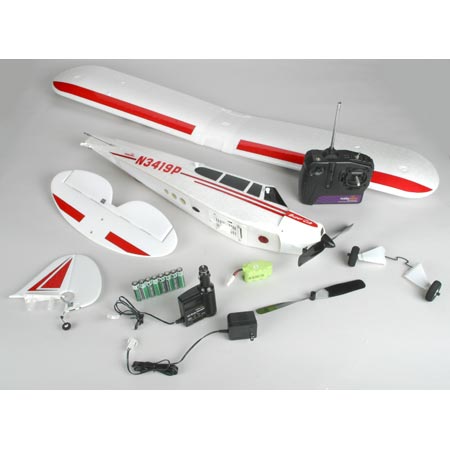

Needed to Complete
| You
don't need anything to get your Super Cub airborne. Just charge the included
battery pack while attach the wing, vertical tail stab and landing gear,
and load the AA batteries into the transmitter. Before you know it, you'll
be ready to go. |
Manual
Spinner: Cub
