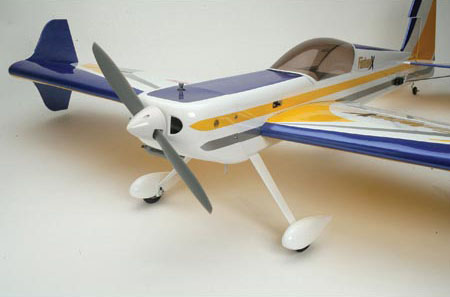

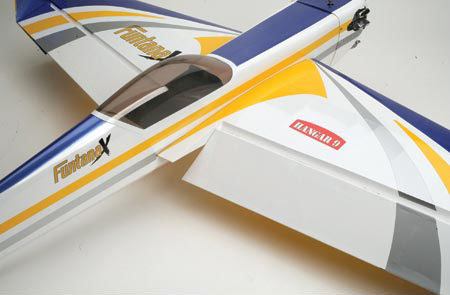

Funtana X 50 ARF
Part# 0V-HAN4150
Key
Features
• Capable of both precise and extreme 3D
aerobatics
• Removable Side Force Generators extreme rudder authority
• Longer landing gear increases prop clearance
• Can be converted for electric flight
• Extremely lightweight all-wood construction
• Covered in exclusive Hangar 9 UltraCote
• Durable factory-painted fiberglass cowl and wheel pants
Overview
The new FuntanaX™ 50 ARF is enhanced with
design and structural upgrades that boast a fresh, progressive look and make
them extreme aerobatic performers to be reckoned with. Revolutionary SFG Technology™
allows pilots to achieve unlimited potential for sport and 3D flight—harriers,
blenders, knife-edge, torque rolls and more. Removable Side Force Generators
(SFG) give extra rudder authority and control to help you perform a virtually
limitless display of extreme 3D and precision aerobatics.
The FuntanaX
offers lightweight balsa and light plywood construction dressed in genuine
UltraCote® covering for a vibrant
look. The FuntanaX 50 benefits from longer, lighter landing gear that provides
plenty of strength for rough landings and allows extra clearance for larger
electric propellers. It can also be easily adapted for electric flying using
some basic modifications.
| Wing
Span |
56
in (1422mm) |
| Overall
Length |
56.75
in (1441mm) |
| Wing
Area |
714
sq in (46.1 sq dm) |
| Flying
Weight |
4-4.5
lbs (1.8kg-2.5kg) |
| Engine
Size |
.32–.46
2-stroke; .40–.82 4-stroke |
| Motor
Size |
Motor
(for electric conversion) E-flite Power 60 brushless outrunner |
| Radio |
4 channels
w/5 servos |
| Trim
Scheme Colors |
Pearl
Blue, Cub Yellow, Silver |
| CG
(center of gravity) |
5 1/16"–5
11/16" (129mm–144mm) behind the leading edge of the wing. |
| Control
Throw (Ailerons) |
Low
Rate: 3/4" (19mm) (9°) Up, 5/8" (16mm) (6°) Down. 3D Rate:2
1/8" (54mm) (27°) Up, 1 7/8" (48mm) (23°) Down |
| Control
Throw (Elevator) |
Low
Rate: 7/8" (23mm) (11°) Up & Down. 3D Rate: 2 5/8" (67mm)
(40°) Up & Down |
| Control
Throw (Rudder): |
Low
Rate: 2" (51mm) (25°) Left & Right. 3D Rate 3 7/8" (98mm)
(45°) Left & Right |
|
| |
|
|
