Overview

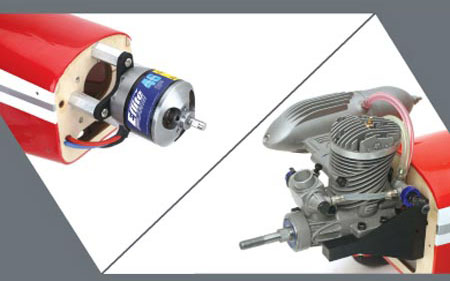

Have it your way with Hangar 9®. Whether you’re into glow fuel or electric power, the Pulse XT 40 ARF lets you fly any way you want. This low-wing sport model includes an electric power option right from the start. All necessary hardware for flying electric is included, and no conversion is necessary.

With its bold electric power option, classic ARF styling and convenient bolt-together assembly, the Pulse XT 40 leads the next generation of versatile, easy-to-maintain, fun-to-fly sport aerobatic aircraft.

Wing Span	60.7" (1540.5mm)
Overall Length	50" (1270mm)
Wing Area	667 sq. in. (43.0 sq. dm)
Flying Weight	Glow engine: 5.5-6.25lbs (2.5-2.8kg) / Electric w/o battery: 4.7-5lbs (2.1-2.3kg) [with battery add approx. 1 lb]
Engine Size	Glow 2-cycle .40-.46, 4-cycle .56-.82 / Electric: E-flite Power 46 Outrunner
Radio	minimum 4 channel
Servos	5 servos
Trim Scheme Colors	UltraCote Colors: True Red, Silver, White
Recommended Battery	2-4200MAH 2S2P 7.4V [Series "Y" harness required] or 1-6000MAH 4S3P 14.8V

Needed to Complete

4-channel radio system (minimum) w/receiver

5 Standard Servo's or equivalent (4 required when building the electric version)

2 9” Servo Lead Extension

6” Y-Harness

.40–.48 2 -stroke or .40–.82 4-stroke or Power 46 Brushless Outrunner
