Tribute 36 ARF
Part# 0V-HAN2925
Key
Features

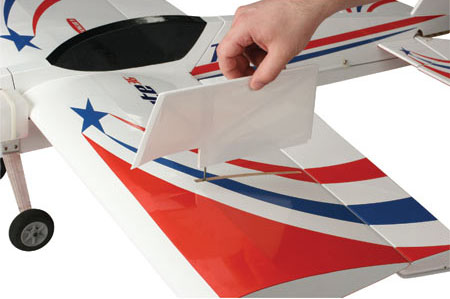

• Removable Side Force Generators allow remarkable
3D performance
• Extremely lightweight all-wood profile construction
• Designed by Hangar 9® ace Mike McConville and aerodynamicist George Hicks
• Covered in exclusive Hangar 9 UltraCote®
• Removable 1-piece wing & bolt-on tail provide easy transport and storage

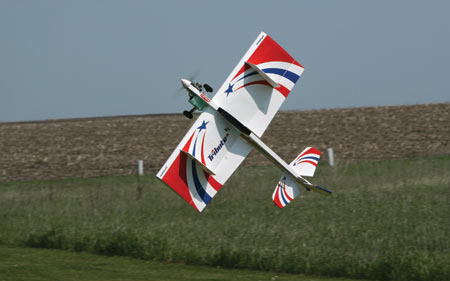

Overview
3D fun-flying has never been better with Hangar
9’s first profile wood ARF. The Tribute 36 ARF is a lightweight balsa-and-ply
sport performer designed by Mike McConville and George Hicks, two of the RC
industry’s most respected pilots. Utilizing a flat profile-style fuselage
and innovative Side Force Generators that contribute very strong rudder authority,
the Tribute 36 is perfect for quick and easy weekend sport fun.
| Wing
Span |
44
5/8" (1133.4mm) |
| Overall
Length |
48"
(1219.2mm) |
| Wing
Area |
690
sq. in. (44.5 sq dm) |
| Flying
Weight |
4–4.5
Lbs (1.8–2 kg) |
| Engine
Size |
.32–.36
2-stroke, .40–.52 4-stroke (some 4-strokes require mount modification)
|
| Radio |
4 channel
w/ 5 servos |
| Trim
Scheme Colors |
White, True Red, Deep Blue |
| CG
(center of gravity) |
4-1/2"
behind the leading edge |
| Control
Throw (Ailerons) |
LOW:
31deg (1 3/4") HIGH (3D): 45deg (2 1/2") |
| Control
Throw (Elevator) |
LOW:
20deg (1 1/4") HIGH (3D): 45deg (3") |
| Control
Throw (Rudder) |
LOW:
45deg (4 1/2") HIGH (3D): 45deg (4 1/2") |
|
| |
|
|
