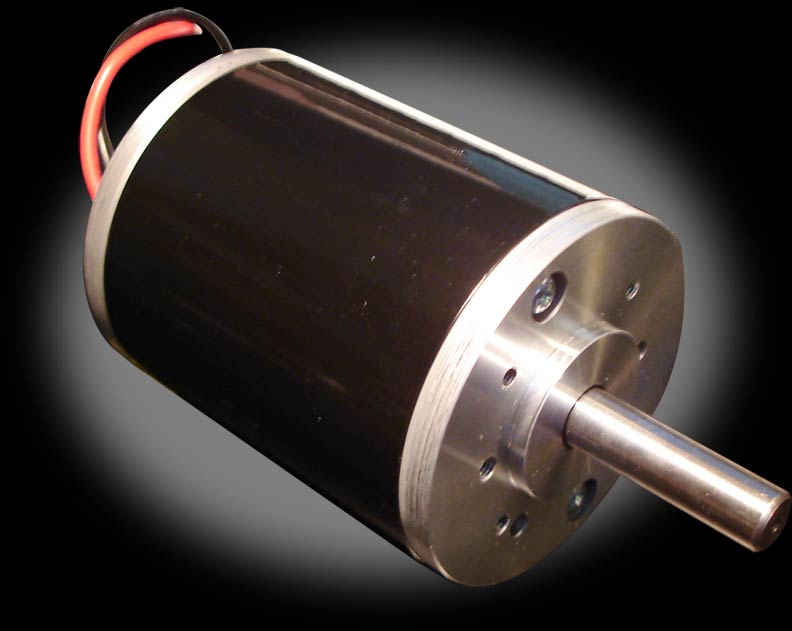

Love
the Magmotors,
but can't afford them? We now offer this budget-priced motor, similar
in size to the Magmotor S28-150, but uses ferrite magnets instead of
neodymium. Regardless, it is still quite a powerful motor, check out
these specs:
3"
Diameter, 3.8" long
24V (can be run higher)
0.5 horsepower
430 oz-in peak torque
74% Efficiency
4700 rpm
12mm diameter shaft, 1 5/8" long with 3mm keyway
3.4 lbs
Ferrite magnets
1.2 Amps No Load Current
60 Amps Stall Current (Estimated)
