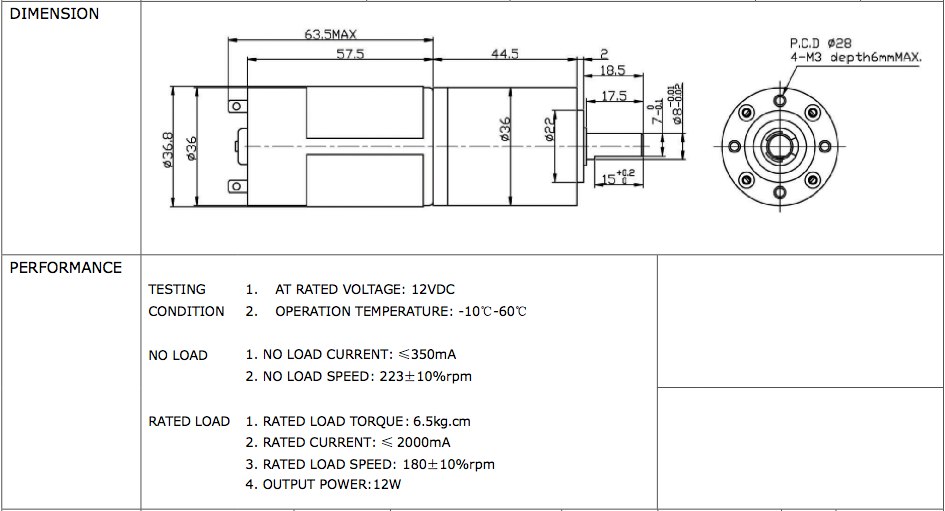

  • Specs SheetRENWHEEL
  • DrawingRENMOT-L

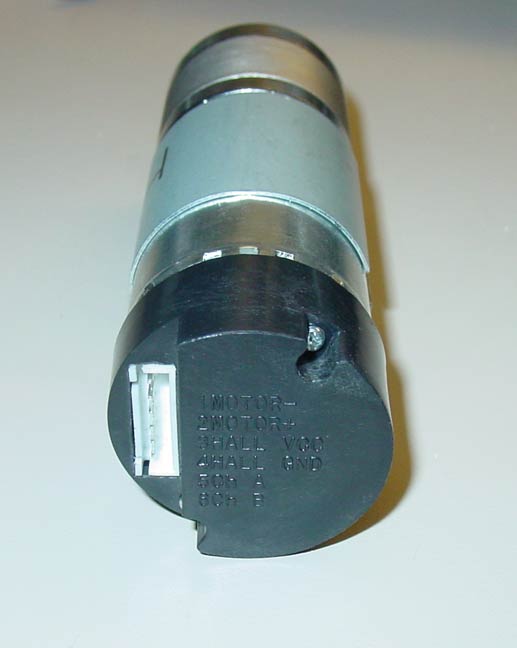

  • alt view
  • Renegade Motor, High Power
Item #: RENMOT-H
UPC: 02575969815
Price: $89.00
    Points to Purchase: 12715
    Availability: In Stock
    Usually ships In 1-2 Business Days

    In Stock: 19
    Quantity:

    The Renegade Encoded Planetary Gear Motors were made to provide the lowest possible power consumption and duty cycle. These are default motors used in the OS Bots Renegade bases. They are designed to be run at 12V. Each motor comes with a 8" cord that plugs into the motor for encoder and power input (connector has .1" standard header spacing)

    Specs
    Operating Voltage 12V
    Operating Temperature -10° to 60° C
    No Load Current ≤ 350mA
    No Load Speed 223 +/- 10% RPM
    Rated Load Torque 6.5kg-cm
    Rated Current ≤ 2000mA
    Rated Load Speed 180 +/- 10% RPM
    Output Power 12W
    Shaft18mm long, 7mm diameter at the flat
