Item #: PRB2314
UPC: 605482982440
Price: $54.99
    Points to Purchase: 7856
    Availability: In Stock
    Usually ships In 1-2 Business Days

    ETA Date: 1/19/2017
    In Stock: 1
    Quantity:
    Key Features
    Reverse operation for more maneuverability
    Completely sealed to operate even when wet
    Automatic setup - no programming required
    Anodized aluminum case

    Overview

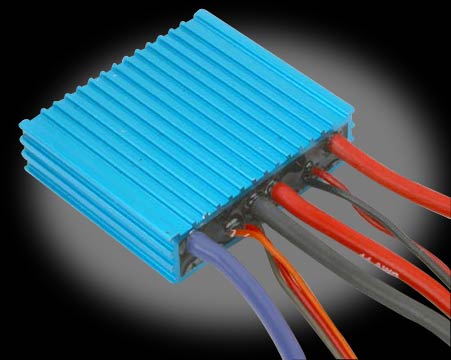

    Pro Boat's waterproof marine electronic speed control is definitely one of the best values in model boating. Anyone can upgrade their RTR boat from a mechanical speed control to the precision of a fully proportional ESC with reverse. The unit's completely potted electronics are sealed in epoxy and encased in a blue anodized aluminum shell that keeps operating temps cool. In addition to being inexpensive and waterproof, no programming is required. Set up is as simple as turning on the transmitter, turning on the receiver and moving the throttle to full forward, then full reverse. The speed control automatically memorizes the initial movements and provides proportional control between the extremes.

    Specs
    Forward: Yes
    Reverse: Yes
    Channels: 1
    Continuous Maximum Current: 50amps forward, 20amps reverse
    Input Voltage: 4-10 cells (4.8-12 V)
    Input Connector Types: Tamiya
    Output Connector Types: Bullet
    Motor Limit: 15 turns
    Dimensions (WxLxH): 42 x 47 x 13 mm
    Weight: 3.1 oz (89 g)
    BEC Voltage: 6.0VDC 1 amp. Max.
    PWM Frequency: 1000 Hz.
    Full On Resistance: 0.070 ohms

    0-PRB2314


    User's Manual

    Overall Customer Rating of 6 Reviews:

    Great ESC!!!!

    Rating:
    Pros:
    Cons:
    i have had this esc for about 2 weeks and it is GREAT!!! like i said before, it hardly glitches! and is barely warm to the touch!!!!!

    Great ESC!!!!

    Rating:
    Pros:
    Cons:
    i have had this esc for about 2 weeks and it is GREAT!!! like i said before, it hardly glitches! and is barely warm to the touch!!!!!

    Great ESC

    Rating:
    Pros:
    Cons:
    This is a great ESC!! i have it on an old rc racing car and this car can move! It hardly ever glitches and it doesnt get very warm! GREAT ESC!!!!

    Great ESC

    Rating:
    Pros:
    Cons:
    This is a great ESC!! i have it on an old rc racing car and this car can move! It hardly ever glitches and it doesnt get very warm! GREAT ESC!!!!

    ProBoat ESC

    Rating:
    Pros:
    Cons:
    Since this is designed for a Boat, the reverse speed is much slower, maybe 60% as fast as the forward speed. It works very well but for back and forth head rotation of my full size R2-D2, one direction is noticeably slower. The head can whip around one way fast but the other way is much slower. IÕm using a 9.6 v battery.
