Item #: HCAP0280
UPC: 708066502802
Retail: $249.99
Price: $109.99
You Save: $140.00 (56.0%)
    Points to Purchase: 15713
    Availability: Discontinued

    In Stock: 1
    Quantity:
    Features
    Charges and Discharges 1-3 cell Lithium-Ion and Lithium Polymer packs
    Peak Charges, Discharges and Cycles 1-10 cell NiCd or NiMH packs
    Charges two batteries at once
    Auto Smart Set automatically calculates safety time-out, Charge Rate, TRICKLE Rate and Discharge Voltage cut-off based on battery type, capacity, and voltage
    Custom Charging and Discharging routines can be created for up to 10 packs and stored in memory
    Prevents overcharging with Peak Detection for NiCd and NiMH packs and CC/CV detection for Lithium-based packs
    On-screen messages appear on large easy to see two line 16-character LCD screen, messages feature less abbreviations, better explanations and units of measurement with every number
    AC/DC compatible for at home or on the field recharging
    Two Temperature Sensor ports

    Includes

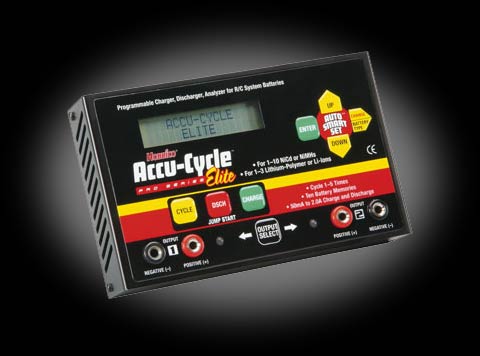

    One Accu-Cycle Elite cycler
    One AC adapter/power supply
    Two (Red & Black) alligator clips w/banana jacks
    One instruction booklet
    One Main/Memory menu sheet
    One NiCd, NiMH, and Lithium menu sheet
    One Charge/Discharge chart w/blank memory chart
    Two year warranty (USA and Canada only)

    Specs
    Input Voltage: 11-14.5V DC
    AC Power Supply: 110V AC 60Hz input, 14.5V DC 2.5A output
    Number of Output Ports: two
    For BOTH Outputs:Battery Types: Nickel-Cadmium (NiCd); Nickel-Metal Hydride (NiMH);Lithium Polymer (LiPo); Lithium-Ion (Li-Ion)
    Number Cells: 1-10 NiCd or NiMH (1.2-12V);1-3 LiPo or Li-Ion (3.6-11.1V)
    Fast Charge Current: 50-2000mA
    Fast Charge Termination:NiCd/MH -"negative deltaV'" Peak Detection;LiPo -"Constant-Current/Constant-Voltage" (4.2V/cell max.);Li-Ion -"Constant-Current/Constant-Voltage" (4.lV/cell max.)
    Peak Detection Sensitivity: 3-15mV per cell adjustable
    Fast Chg Safety Timer: automatically calculated
    TRICKLE Charge Current: 0-200mA
    Peak Detection Delay: 3 minutes
    Discharge Current: 50-2000mA
    Discharge Cutoff Voltage: 0.8-1.2V per cell adjustable for NiCd & NiMH;3.7V per cell fixed for Li-Ion and LiPo
    Cycle Count: 1 to 5 (NiCd and NiMH only)
    Cycle Delay- Chg/Dsch: 10 minutes
    Status Indicators: two tri -color LEDs (Red/Amber/Green)
    Optional Temp. Cutoff: 60-130°F (15-54°C)
    Output Connectors: banana jacks
    Battery Memories: ten
    Display Type: 2-line, 16 character LCD
    Case Size: 3.7 x 6.1 x 1.2 in (94 x 30.5 x 155mm)
    Weight: 13.23oz (375g, not including Power Supply)
    Length: 6.1" (155mm)
    Width: 3.7" (94mm)
    Height: 1.2" (30.5mm)

    0-HCAP0280


    Owner's Manual
