Item #: GPMM1830
UPC: 735557418304
Retail: $79.99
Price: $49.99
You Save: $30.00 (37.5%)
    Points to Purchase: 7142
    Availability: Available
    Usually ships In 3-9 business days (sooner, if drop-shipped)

    Quantity:

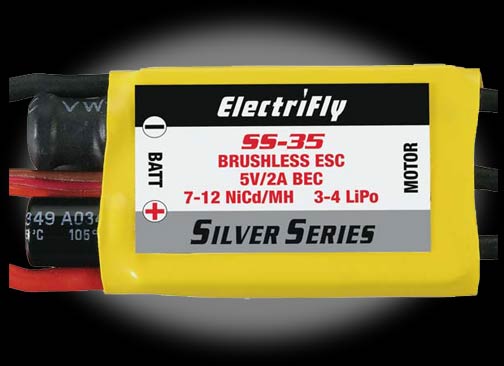

    This is the ElectriFly Silver Series 35 amp Brushless Electronic Speed Control.
    Great for medium to larger high performance airplanes.
    Delivering 35A of continuous current with a built-in
    Battery Eliminator Circuit which can handle 2A, this
    ESC is very simple to use and very affordable.

    FEATURES
    Compatible with NiCd, NiMH and LiPo batteries
    Auto-detects input volts and sets Low-Voltage cutoff
    8.5kHz switching frequency, for good run-time and cool operation
    Pre-installed Universal radio connector* (see Comments below)
    Pre-installed WS Deans Ultra male connector for battery (see
    Comments below)
    Pre-installed gold plated 3.5mm female bullet connectors for motor
    High powered switching BEC (Battery Eliminator Circuit) which
    handles 3 or 4 standard servos
    Full proportional forward and smooth throttle response with ON/OFF
    brake
    Safe Start System** (see details in Comments below)
    Thermal Protection stops motor when maximum temperature 230°F
    is reached
    180 Day Warranty (USA & Canada Only)

    INCLUDES
    One Brushless ElectriFly Silver Series 35A Speed Control with
    pre-installed receiver connector, battery connector, and motor
    connectors.

    REQUIREMENTS
    Mating motor connectors, GPMM3112
    Mating battery connector, WSDM3000

    SPECIFICATIONS
    Length: 2" (52mm)
    Width: 1.02" (26mm)
    Height: .31" (8mm)
    Weight: 1.13oz (32g)
    Input Voltage: 6-12 cells NiCd/NiMH
    2-4 cells LiPo
    (20V input w/o BEC)
    Output Current: 35A continuous maximum
    40A surge maximum
    Max Output Power: 350 watts
    ON-resistance: .01 ohms
    Operating frequency: 8.5kHz
    BEC: 5V/2A
    Low Voltage Cutoff: Battery voltage x .67
    Thermal Cutoff: 230°F (110°C)
    Timing Angle: 12°
    Brake: ON/OFF

    0-GPMM1830


    Manual
