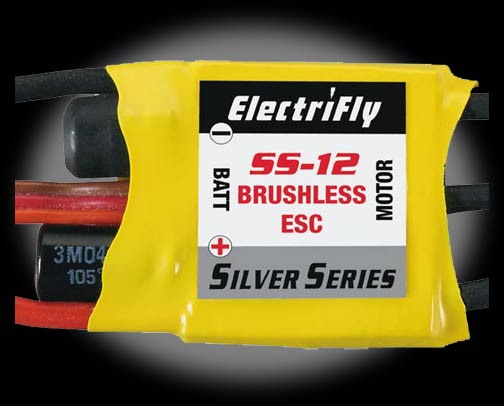

    This is the ElectriFly Silver Series 12 amp Brushless Electronic Speed Control.
    Great for small, lightweight, high performance airplanes from flat-foams to built-up 3Ds. Great for Outrunner style Brushless Motors, delivering 12A of continuous current with a built-in Battery Eliminator Circuit which can handle 1.5A. Simple to use and very affordable.

    FEATURES
    Compatible with NiCd, NiMH and LiPo batteries
    Auto-detects input volts and sets Low-Voltage cutoff
    8.5kHz switching frequency, for good run-time and cool operation
    Pre-installed Universal radio connector* (see Comments below)
    Pre-installed polarized micro connector for battery
    Pre-installed gold plated 2mm female bullet connectors for motor
    High powered switching BEC (Battery Eliminator Circuitry) which
    handles 2 or 3 micro servos (4 if adequate airflow is provided)
    Full proportional forward and smooth throttle response with ON/OFF brake
    Safe Start System** (see details in Comments below)
    Thermal Protection stops motor when maximum temperature 230°F is reached

    INCLUDES
    One Brushless ElectriFly Silver Series 12A Speed Control with
    pre-installed receiver connector, micro battery connector, and
    motor connectors.

    REQUIREMENTS
    Mating motor connectors
    Mating battery connector

    SPECIFICATIONS
    Length: 1.30" (33mm)
    Width: .91" (23mm)
    Height: .24" (6mm)
    Weight: .49oz (14g)
    Input Voltage: 6-12 cells NiCd/NiMH
    2-4 cells LiPo
    (20V input w/o BEC)
    Output Current: 12A continuous maximum
    15A surge maximum
    Max Output Power: 150 watts
    ON-resistance: .03 ohms
    Operating frequency: 8.5kHz fixed
    BEC: 5V/1.5A
    Low Voltage Cutoff: Battery voltage x .67
    Thermal Cutoff: 230°F (110°C)
    Timing Angle: 12°
    Brake: ON/OFF
