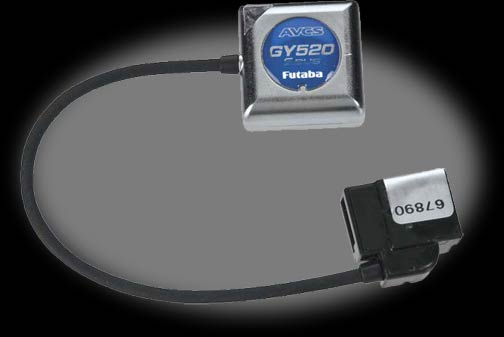

    This is the Futaba GY520 Heading Hold Gyro.

    FEATURES
    Ultra small and light weight gyro contained in one unit-no separate
    sensor and control unit
    Utilizes a high speed advanced PID (Proportional-Integral-
    Derivative) control algorithm
    Latest MEMS (Micro-Electro-Mechanical Systems) allows complete
    control system on one chip
    Delivers superior performance with analog servos and excels with
    digital servos
    F3C and 3D mode selectable, six programmable parameters
    Operates at very high speed; 280Hz in the 1520uS mode and 506Hz in
    the 760uS mode
    Programmable through single button and multi-color LED or through a
    PC using Futaba CIU-2 USB adapter
    Registered AVCS (Angular Velocity Control System) architecture
    achieves unmatched tail holding ability
    One year limited warranty

    INCLUDES
    Futaba GY520 Heading Hold Gyro, instruction manual, one each 13"
    (330mm) lead with red connectors and lead with black connectors
    two sections of sensor tape and mini screwdriver

    REQUIREMENTS
    Digital or analog servos

    SPECIFICATIONS
    Size: 0.82 x 0.82 x 0.43" (20.8 x 20.8 x 11mm)
    Weight: 0.243 oz (6.9g)
    Voltage Range: 3.8 - 6.0V DC
    Control System: Advanced PID control
    Current Draw: 40mA (without servo)
    Sensor: MEMS vibrating structure gyro
    Operating Temperature: 14°F - 113°F (-10°C - +45°C)
    Sensor Rate Range: +/- 800° sec
    Angular Velocity Range: +- 800 deg/sec
