    FiveBOT FB003 Demo - The Robot MarketPlace

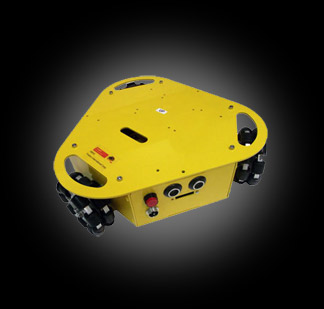

    The FiveBOT FB003 Three Omni-wheel robotic platform has vast advantages over a conventional design in terms of mobility in congested environments. It is capable of easily performing tasks in environments filled with static and dynamic obstacles and narrow aisles. The FB003 is designed for researchers and students. It is well suited for surveillance and transportation.

    The FB003 Omni-Wheel robotic platform comes with 3 Omni-directional wheels driven by 3 DC motors, allowing rotation and movement in any direction simultaneously. Three infrared rangefinders allow the FB003 to track and chase objects, follow walls, and avoid obstacles.

    The FB003 Platform has maximum load capacity of 15kg, so you can add your own stuff on top like a camera or robotic arm.

    NOTE: Assembly is required. You'll need a Phillips head screwdriver.

    Chassis Details:
    Length: 330mm
    Width: 330mm
    Height: 108mm
    Net Weight: 3.45kg
    Ground Clearance: 24mm
    Wheel Diameter: 100mm
    Wheel Thickness: 38mm
    Wheel Material: Aluminum with Nylon Rollers
    Wheelbase: 275mm
    Chassis Material: Aluminum
    Color: Yellow
    Speed: 0.6 m/s
    Climbing Capacity: 20 degree incline
    Load Capacity: 15kg
    Controller: Arduino ATMega328P, IO Expansion Board
    Mini-ITX Compatible: No

    Motor Details:
    Motor Type: Faulhaber 12V DC Coreless Motor
    Gearbox Ratio: 64:1
    Power: 17W
    Speed: 120 RPM
    Diameter: 30mm
    Length: 85mm
    Shaft Diameter: 6mm
    Shaft Length: 35mm
    No-Load Current: 75 mA
    Load Current: 1.4A
    Encoder Type: Optical
    Encoder Phase: AB
    Encoder Resolution: 12CPR

    Battery Details:
    Battery: 12V NiMH
    Charger: 12V Wall Charger
    Charge Time: 2 hours
    Running Time: 0.5 hour
    s





    FiveBOT FB003 Explained - The Robot MarketPlace



    0-FB003


    Quick Start Guide

    Sample Code
