Item #: FB002
UPC: 02029315610
Retail: $3,500.00
Price: $2,299.99
You Save: $1,200.01 (34.3%)
    Points to Purchase: 328570
    Availability: Available
    Usually ships In 3-9 business days (sooner, if drop-shipped)

    Quantity:

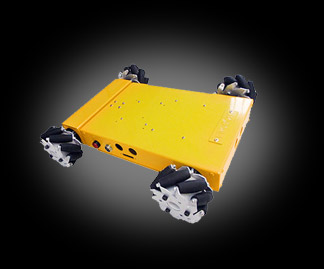

    The FiveBOT FB002 4WD Mecanum Wheel Robotic Platform is designed for robotic research and development. The FB002 can be used as a transporter, a remote monitoring device anda Navigation/Patrol robot. The Mecanum Wheels allow it to move in any direction.

    The FB002 Platform has a maximum load capacity of 20kg, so you can add your own stuff on top like a camera, robotic arm, or small child.

    NOTE: Assembly is required. You'll need a Phillips head screwdriver.

    Chassis Details:
    Length: 380mm
    Width: 215mm
    Height: 73mm
    Net Weight: 4.38kg
    Wheel Diameter: 94mm
    Wheel Thickness: 51mm
    Wheel Material: Aluminum with Rubber Rollers
    Chassis Material: Aluminum
    Color: Yellow
    Speed: 0.6 m/s
    Climbing Capacity: 30 degree incline
    Load Capacity: 20kg
    Controller: Arduino ATMega328P, IO Expansion Board
    Mini-ITX Compatible: No

    Motor Details:
    Motor Type: Faulhaber 12V DC Coreless Motor
    Gearbox Ratio: 64:1
    Power: 17W
    Speed: 120 RPM
    Diameter: 30mm
    Length: 85mm
    Shaft Diameter: 6mm
    Shaft Length: 35mm
    No-Load Current: 75 mA
    Load Current: 1.4A
    Encoder Type: Optical
    Encoder Phase: AB
    Encoder Resolution: 12CPR

    Battery Details:
    Battery: 12V NiMH
    Charger: 12V Wall Charger
    Charge Time: 2 hours
    Running Time: 0.5 hours

    0-FB002


    Quick Start Guide
