Item #: EFLA1060
UPC: 605482331545
Retail: $109.99
Price: $84.99
You Save: $25.00 (22.7%)
    Points to Purchase: 12142
    Availability: Discontinued

    In Stock: 2
    Quantity:
    This product has been discontinued. Please see this similar product instead.

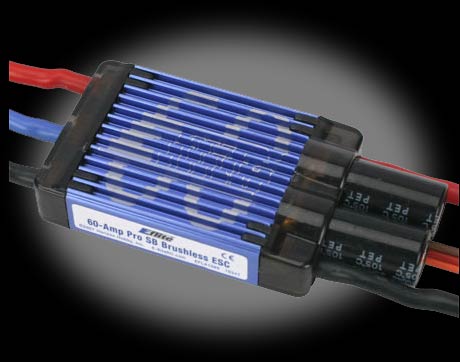

    When performance matters in your high-current applications look no further than the E-flite 60-Amp Pro Switch Mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated Switch-Mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 60 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic endcaps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range, and more, the E-flite 60-Amp Pro Switch Mode ESC is truly a 'pro series' electronic speed control.

    Features
    Up to 60-amp continuous current with proper air flow, 75-amp peak
    5-volt Switch-Mode BEC circuit capable of 2.5-amp continuous current on any recommended input voltage
    Drives up to 7 analog or 6 digital standard-sized servos, with the BEC on any recommended input voltage
    3-6S Li-Po, 9- to 18-cell Ni-Cd/Ni-MH input voltage
    Finned heat sinks
    Programmable motor braking
    Safe power-arm mode prevents accidental starts
    Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V), or 70% of battery starting voltage
    Programmable soft start for helis and airplanes
    Auto motor shut down if signal is lost or there is interference
    Programmable timing--5 user-selectable ranges for use with a larger variety of brushless motors
    Programmable throttle input range (1.1-1.9 ms or 1.2-1.8 ms)
    Utilizes new smaller MOSFETs technology to minimize weight
    Radio System Power On/Off Switch
    Optional RS232 Serial Link available for programming
    Pre-wired connectors--E-flite EC3 on battery input and 3.5mm female gold bullets on motor output leads

    Specs
    Brake: Yes - Programmable
    Continuous Maximum Current: 60A with reasonable cooling
    Input Voltage: 10.8V - 22.2V
    Input Connector Types: 13AWG with E-flite EC3 connector
    Output Connector Types: 13AWG with 3.5mm Female Gold Bullet Connectors
    Momentary Peak Current: 75A (15 sec)
    Dimensions: 76 x 33 x 13 mm (3 x 1.3 x .5 in)
    Weight: 66 g (2.3 oz)
    Wire Gauge: 13AWG
    Cells w/BEC: 3-6S Li-Po or 9-18 Ni-MH/Ni-Cd
