Item #: DUB673
UPC: 011859006730
Retail: $10.42
Price: $8.99
You Save: $1.43 (13.7%)
    Points to Purchase: 1285
    Availability: Available
    Usually ships In 3-9 business days (sooner, if drop-shipped)

    Quantity:
    Designed for use in aircraft, car, boat, and helicopter models. Unlike conventional servo arms, they are made of long fiber composites for added strength. Longer versions have increased throw allowing for greater movement in controls.

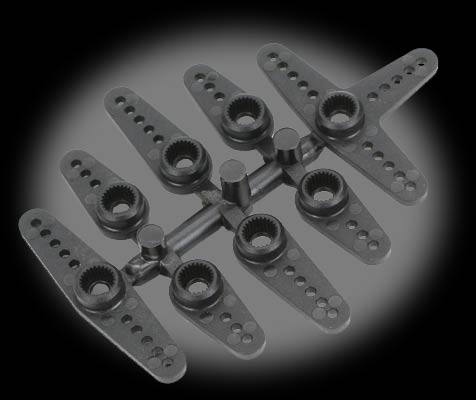

    Includes
    4 short, 2 long servo arms that extend in one direction from the servo center
    One long arm that extends in two opposing directions from the servo center
    One 3-arm horn

    Specs
    Short: Mounting holes at: 7, 10 and 12mm. Total length-16mm
    Long: Mounting holes at: 8, 10, 13, 16, and 19mm Total length-22mm
    Dual: Mounting holes at: 6, 10, 12, 16, and 18mm Total length-22mm
    3-arm: Mounting holes at: 7, 10, 13, 16, and 19mm Total length-22mm

    All measurements are from the center of the arm. The dual and 3-arm are only from one side to center. Actual overall length for both: 44mm
    Fits the FUTABA servos with splined output shafts.

    0-DUB673
