        Yak Wheels


Click photo to enlarge, double-click to shrink.

$19.99
QTY
Stock Status: In Stock


Solidworks 3D File:

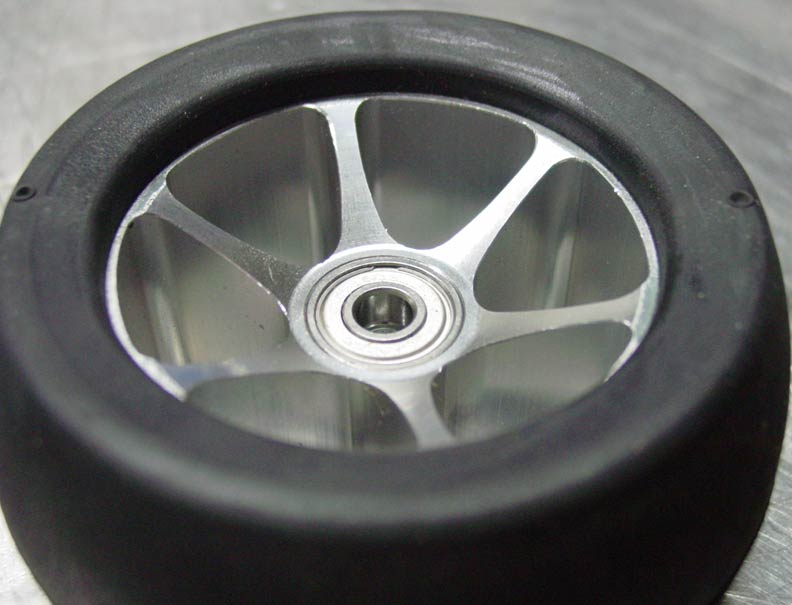

Detail of aluminum rim :

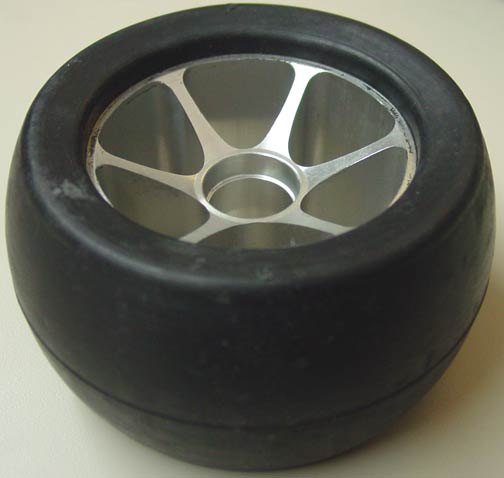

Yak Wheel-Large Smooth Tread
Part# 0-YAK2

The Yak Wheel has a beautiful and VERY rugged machined aluminum wheel and a hard but grippy rubber, 2.5" wide tread. The only complaint with these is that the tread profile isn't 100% flat, and might need to be planed a little bit before use in robotic combat... But as it is, it is still VERY grippy!

This product comes with ABEC 5 bearings included, but can be removed.

Outer Diameter 4 7/16" (113mm)
Tread Width 2 1/2" (64mm)
Bore Diameter ~7/8"
Capacity 450+ lbs. !
Weight 1.38125 lbs (22.10 oz)
# of Spokes 6
