Switch two things on and off with one transmitter stick! Using only one channel output from your RC receiver, you can drive two independent motors, contactors, or pneumatic/hydraulic solenoids. Great for remotely-operating some of our larger solenoids or relays. Plus, a simple wiring configuration also converts this to a mechanical H-bridge which is perfect for running a single linear actuator or motor in both forward/off/reverse.

When used with an actuator, optional inputs from limit switches permit you to arrest motion in either direction. Silver cadmium oxide relay contacts. Maximum motor/coil load: 12 amps at 30 volts DC inductive.

Fault detection safely switches off both relays if receiver signal is lost.

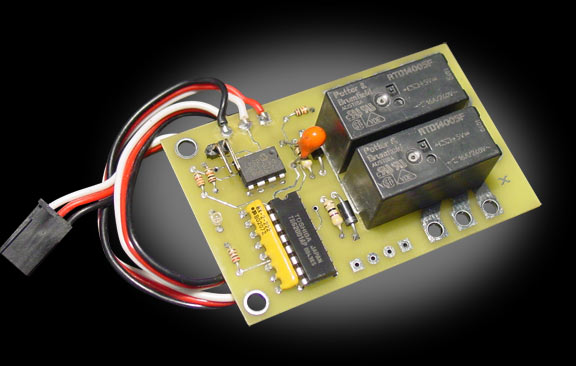

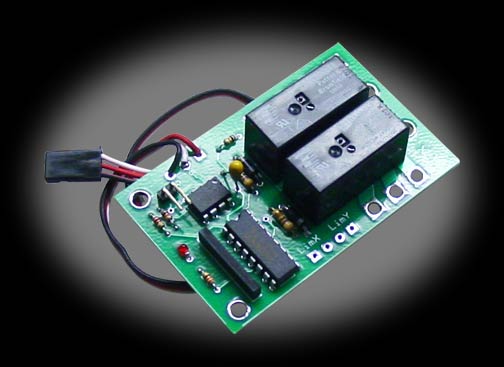

	RCE220
Size	2.85" x 1.90"
Weight	1.59 oz with RC cable
Supply voltage	3.8 - 5.5 VDC
Supply current	20ma standby, 75ma when energized
Switching time	7.0 milliseconds
Load rating	12 amps at 30V DC

An RC Servo lead (10" long) is already soldered to this unit- you only need to solder on your input/output wires. Price reflects the addition of this servo lead. Connector is universal Futaba/JR style.

Data Sheet
