0-TAMX8116 4-Speed Crank Axle Gearbox Clear - Tamiya 89916 <font color="red" size="2" face="Arial, Helvetica, sans-serif"><b>This product has been discontinued. Please see <a href="http://www.robotmarketplace.com/products/0-70093.html">this similar product</a> instead.</b><p></font><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Tamiya 4-speed crank-axle gearbox has four possible gear ratios, including the highest gear ratio of Tamiya's gearbox series, 5402:1, as well as 126:1, 441:1, and 1543:1. This gearbox also features a worm gear, which locks the output shaft when the motor is not turning. A clutch gear prevents the gearbox from destroying itself in case the output shaft gets stuck. The kit comes with all parts necessary to build the gearbox in any of the four possible configurations. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Typical Operating Voltage: 3V<br />
Gear Ratio Options: 126:1, 441:1, 1543:1, 5402:1<br />
No Load Speed at 3V: 12300 rmp<br />
No Load Current at 3V: 150 mA<br />
Stall Current at 3V: 2100 mA<br />
Stall Torque at 3V: 0.5 oz-in.</font></p>

4-Speed Crank Axle Gearbox Clear - Tamiya 89916
The Tamiya 4-speed crank-axle gearbox has four possible gear ratios, including the highest gear ratio of TamiyaĠs gearbox series, 5402:1.

$7.99
Robot MarketPlace - 4-Speed Crank Axle Gearbox Clear - Tamiya 89916

Motors
    Small Geared Motors

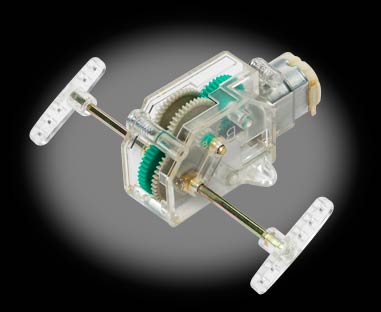

Click photo to enlarge.

4-Speed Crank Axle Gearbox Clear - Tamiya 89916
Part# 0-TAMX8116


No reviews yet.

Retail: $10.50

Our Price:

$7.99

This Product Has Been Discontinued
Stock Status: Removed
